How to configure Table Custom Field post function

Before configuring the post function, make sure you have added and configured the column headings of the Table Custom Field.

Not sure how? Refer to the following:

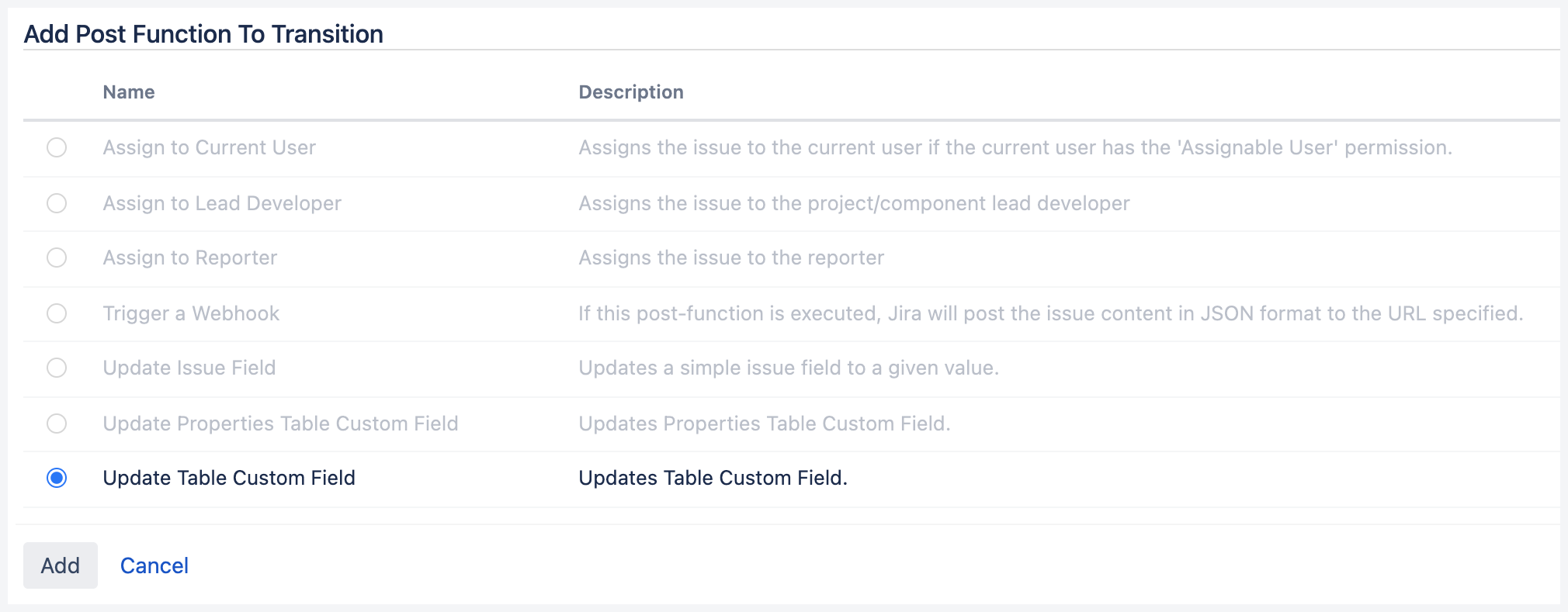

In your workflow, select the transition you would like to add the post function in, select Update Table Custom Field, then click Add.

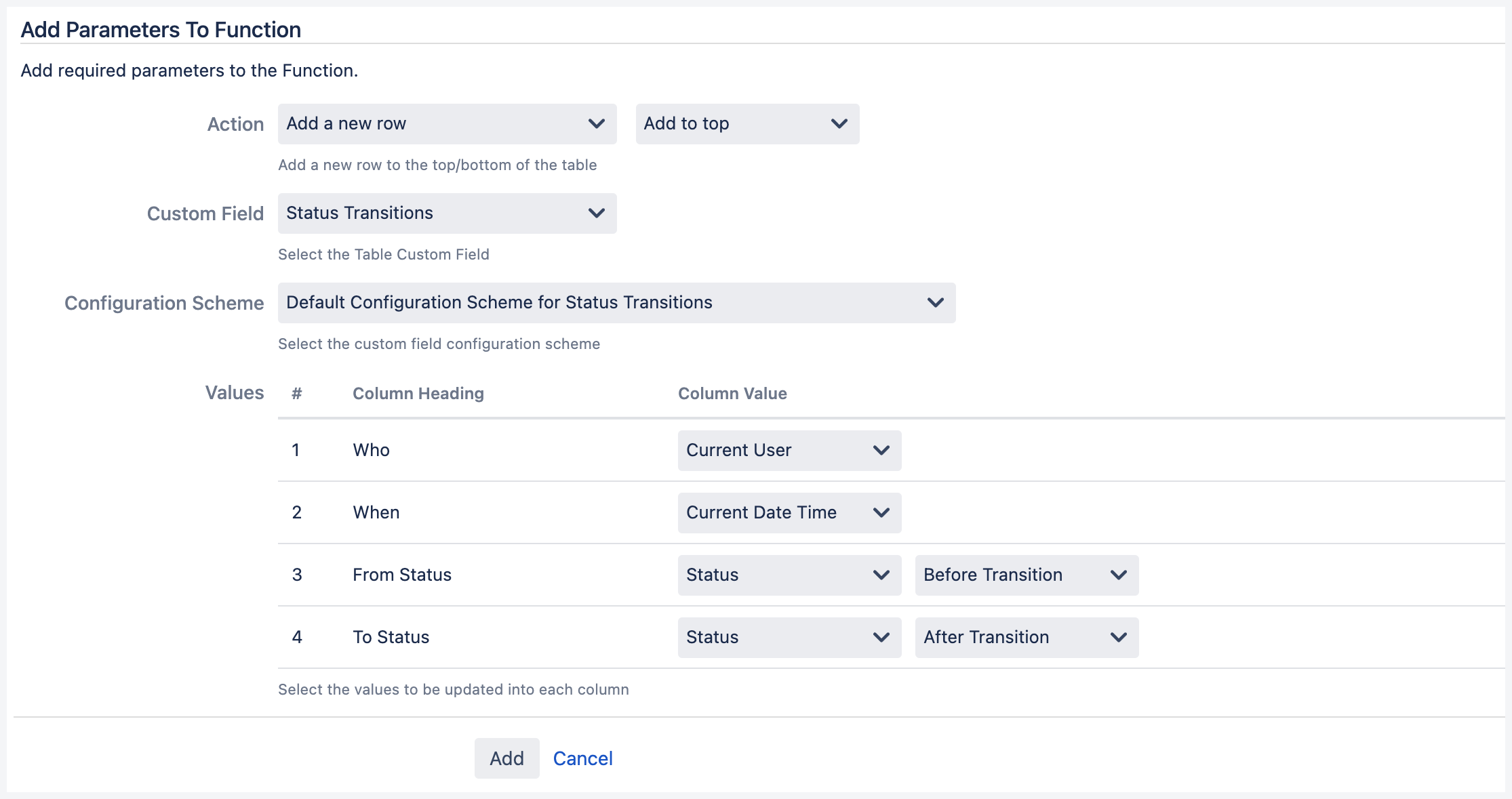

Fill in the required fields for the post function, then click Add.

Fields	Description
Action	Select the action to execute: Add a new row Update an existing row Populate row with key Delete an existing row Delete an existing row with key Purge table Sort table
Position	Select the position of the table row: Add to top / First row Add to bottom / Last row
Table Custom Field	Select the Table Custom Field to execute the action
Configuration Scheme	Select the configuration scheme for the selected custom field
Key Column(s)	Select the columns to be used for searching the target row
Values	Select the values for each column: Refer to Supported Field Types for list of values available.
Values	Select whether to get value before or after the transition: Before Transition After Transition
Sort By	Enter the columns to sort the row entries by

denotes the fields required for each action.
