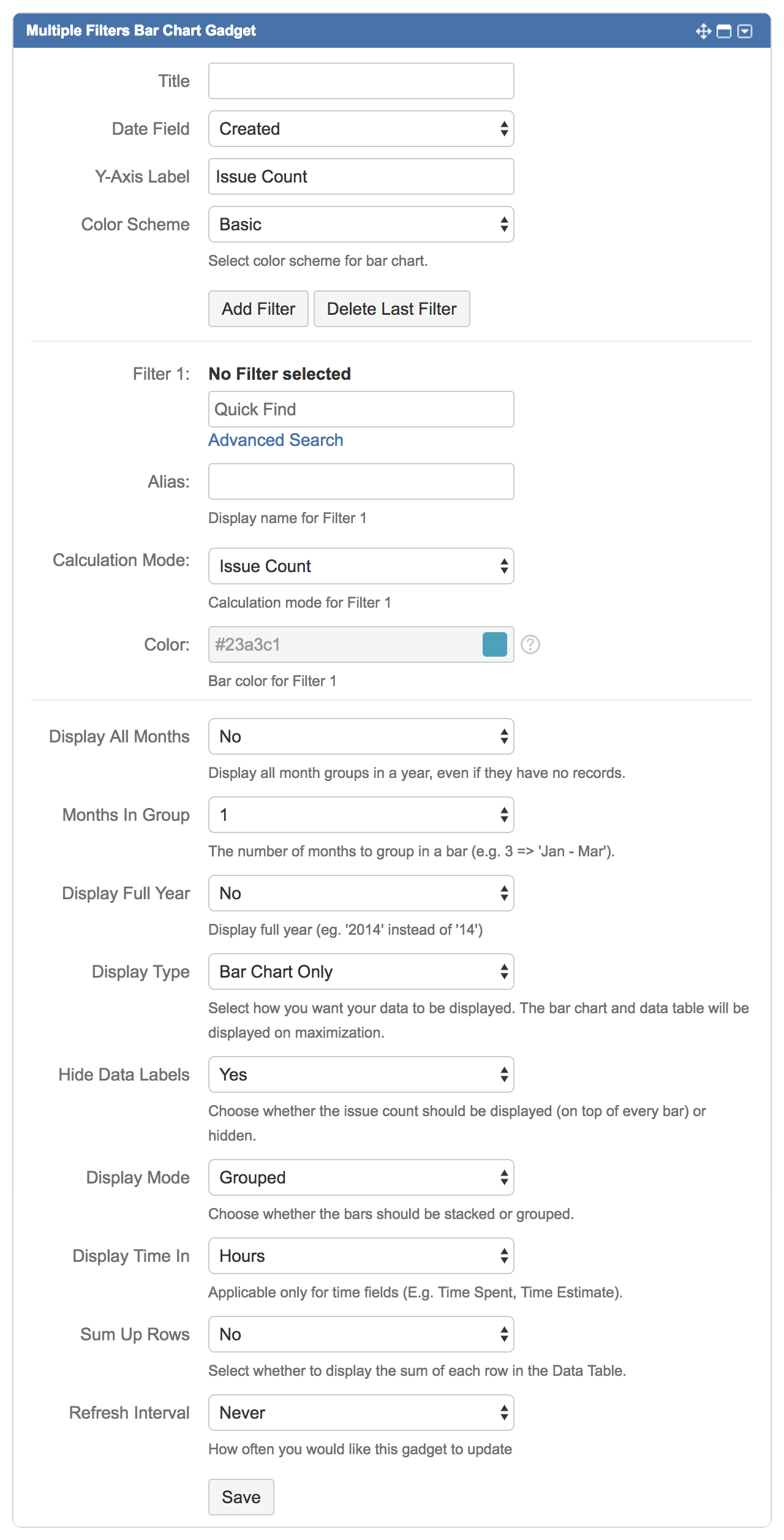

How to Configure Multiple Filters Bar Chart Gadget 2.x / 3.x

Title

Enter title for the gadget.

Date Field

Created

Select the date field to plot as the x-axis of the bar chart:

• Created

• Updated

• Resolved

• Due Date

• Custom Date Picker or Date Time Picker fields

Y-Axis Label

Issue Count

Define the y-axis label to be displayed.

Color Scheme

Basic

Select a color scheme for the bar chart:

• Basic

• Contrasting

• Shades

• Warm

• Custom

Add Filter

Click to add another filter.

^{*Maximum of 12 filters can be added.}

Delete Last Filter

Click to delete the last filter.

Filter n

Select the filter(s) to plot the bar chart.

Alias for Filter n

Define an alias for the filter(s) to be displayed in the legend.

If undefined, filter name will be displayed.

Calculation Mode for Filter n

Issue Count

Select the calculation mode:

• Same as Filter 1 (Available from Filter 2 onwards)

• Issue Count

• Time Spent

• Time Estimate

• Time Original Estimate

• Custom Number fields

Select the calculation operator:

• Sum

• Average

• Minimum

• Maximum

^{*Not applicable for Issue Count and Same as Filter 1 option.}

Color for Filter n

Pick a color for the bar.

^{*Configurable only if Color Scheme is set to Custom.}

Display All Months

 No

Select whether to display all months in the chart regardless of the value:

• Yes (Display all months, even if there is no value)

• No (Display months with values only)

Months In Group

 1

Select the number of months to be grouped together:

• 1

• 2

• 3

• 4

• 6

• 12

• All Time

E.g. 4 months in group: Jan ― Apr, May ― Aug, Sep ― Dec.

Display Full Year

 No

Select whether to display the full year:

• Yes ('2008' for year 2008)

• No ('08' for year 2008)

Display Type

 Bar Chart Only

Select the display type of the gadget:

• Bar Chart Only

• Data Table Only

• Bar Chart and Data Table

Hide Data Labels

Yes

Select whether to hide the bar values:

• Yes

• No

Display Mode

 Grouped

Select how the bars should be displayed:

• Grouped (Side by side)

• Stacked (Above one another)

Display Time In

Hours

Select how the time should be displayed:

• Hours

• Days

• Weeks

^{*Applicable for Time Fields only.}

Sum Up Rows

No

Select whether to sum up rows in the Data Table:

• Yes

• No

^{*Applicable only if Data Table is displayed.}

Chart Mode

Normal

Select how the chart data should be calculated over time:

• Normal

• Cumulative
