Create a 3 slices pie chart

Overview

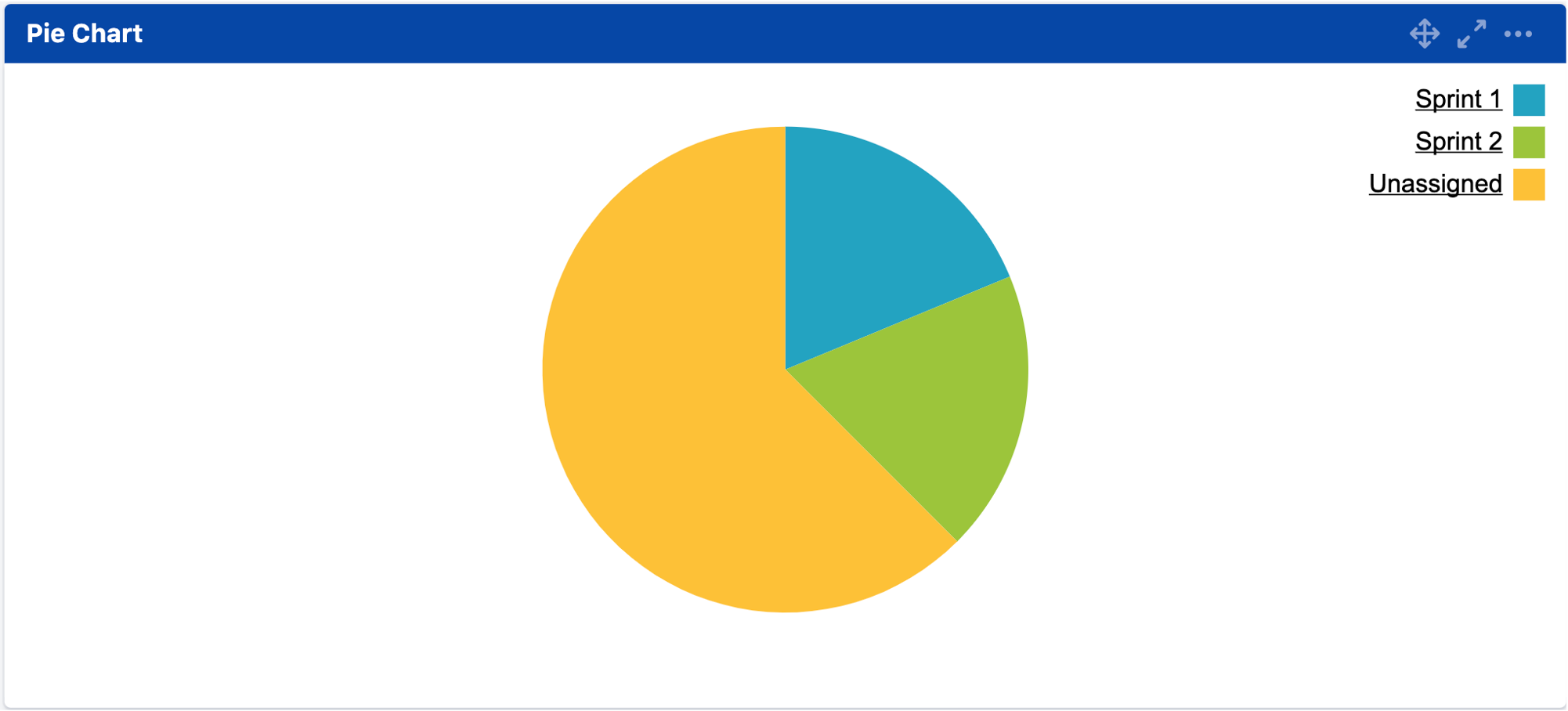

With the Multiple Filters Pie Chart Gadget, It is possible to create a 3 slices pie chart where each slice of the chart is based on a different JIRA filter.

As a project manager, there may be a need to see the number of issues in Sprint 1, Sprint 2 and Unassigned.

Set up

1. Create the following filters with the following JQL

Filter Name	Filter JQL
[SCRUMT] Sprint 1	`project = "Sample Scrum" AND Sprint = 1`
[SCRUMT] Sprint 2	`project = "Sample Scrum" AND Sprint = 2`

2. Add a Multiple Filters Pie Chart Gadget

Refer to How to add Multiple Filters Chart Gadget into your Dashboard

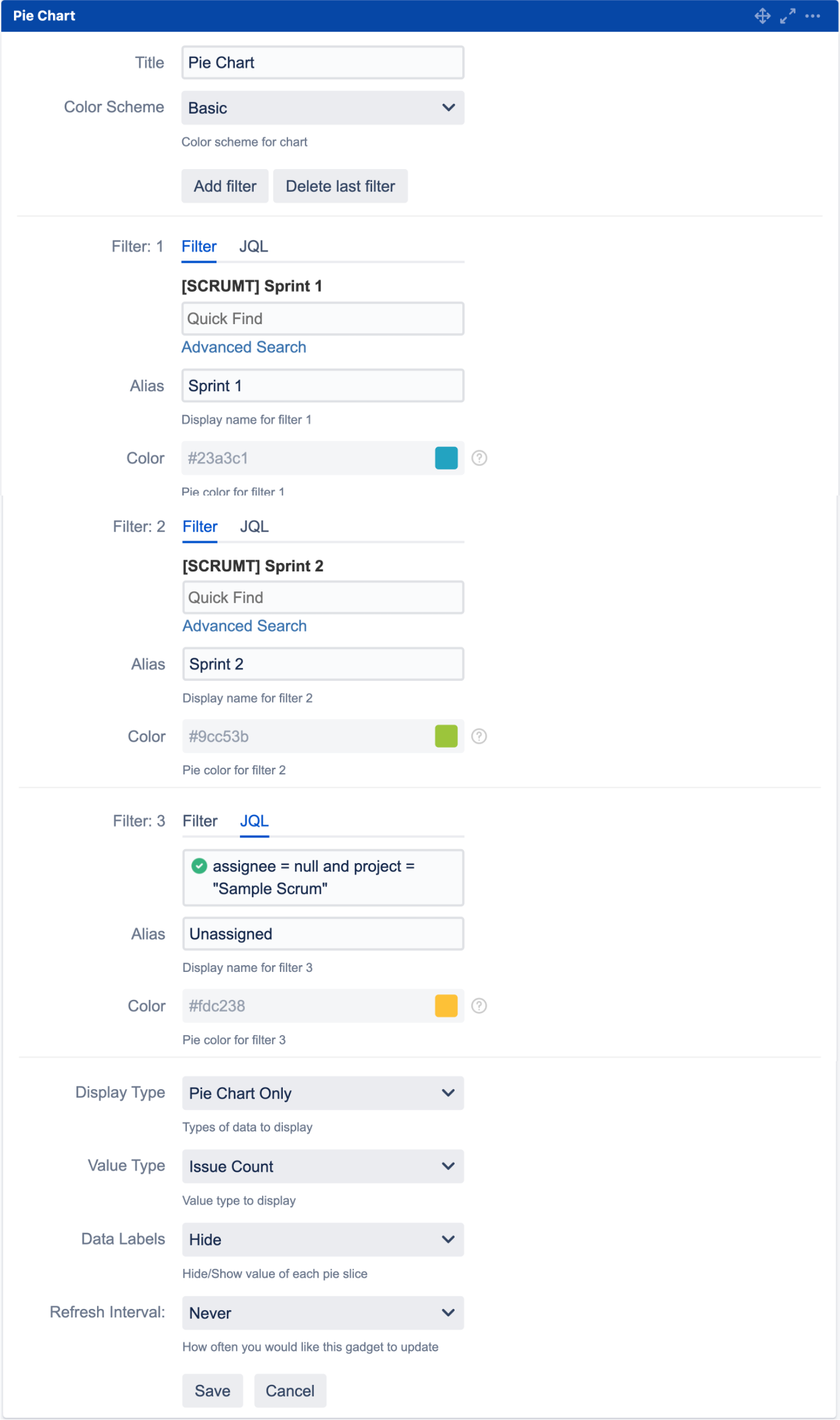

Add a Multiple Filters Pie Chart Gadget in the dashboard
Click Add Filter two times to add 2 more filters
For the 1st filter, use [SCRUMT] Sprint 1, set Alias to Sprint 1
For the 2nd filter, use [SCRUMT] Sprint 2, set Alias to Sprint 2
For the 3rd filter, click JQL and enter the following,
```
assignee = null and project = "Sample Scrum"
```
Click Save
