Configuring Rolling Window Sprint Gadget

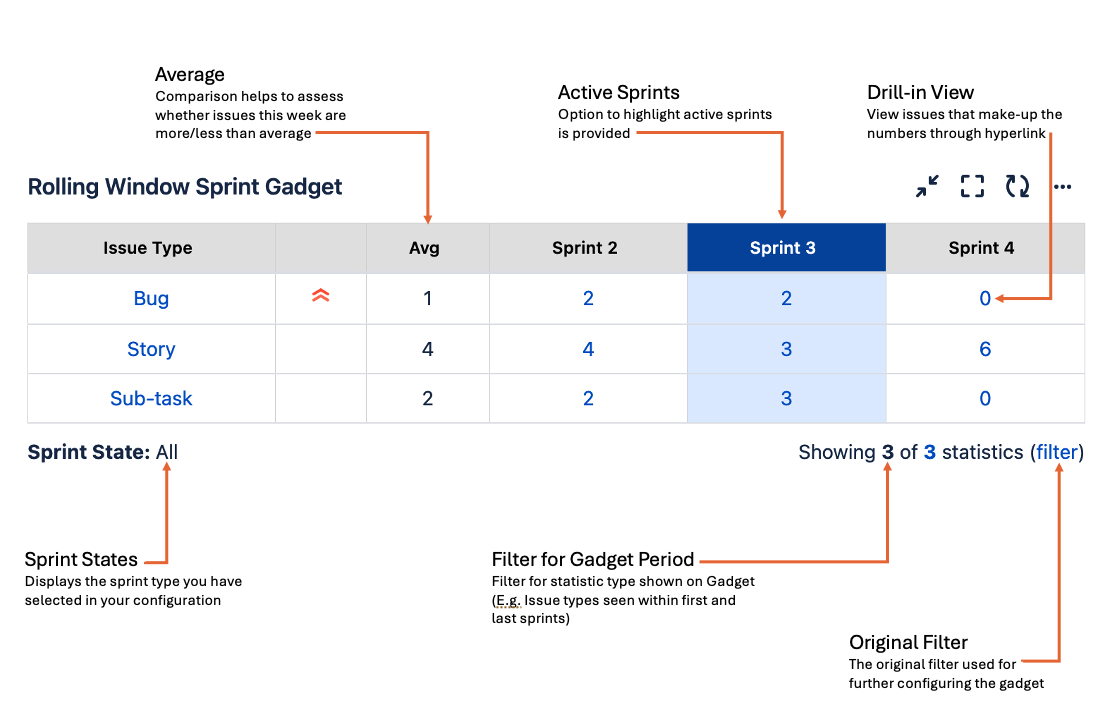

Rolling Window Sprint Gadget overview

The Rolling Window Sprint Gadget allows you to see the number of matching issues for the last / next X sprints depending on the period type selected.

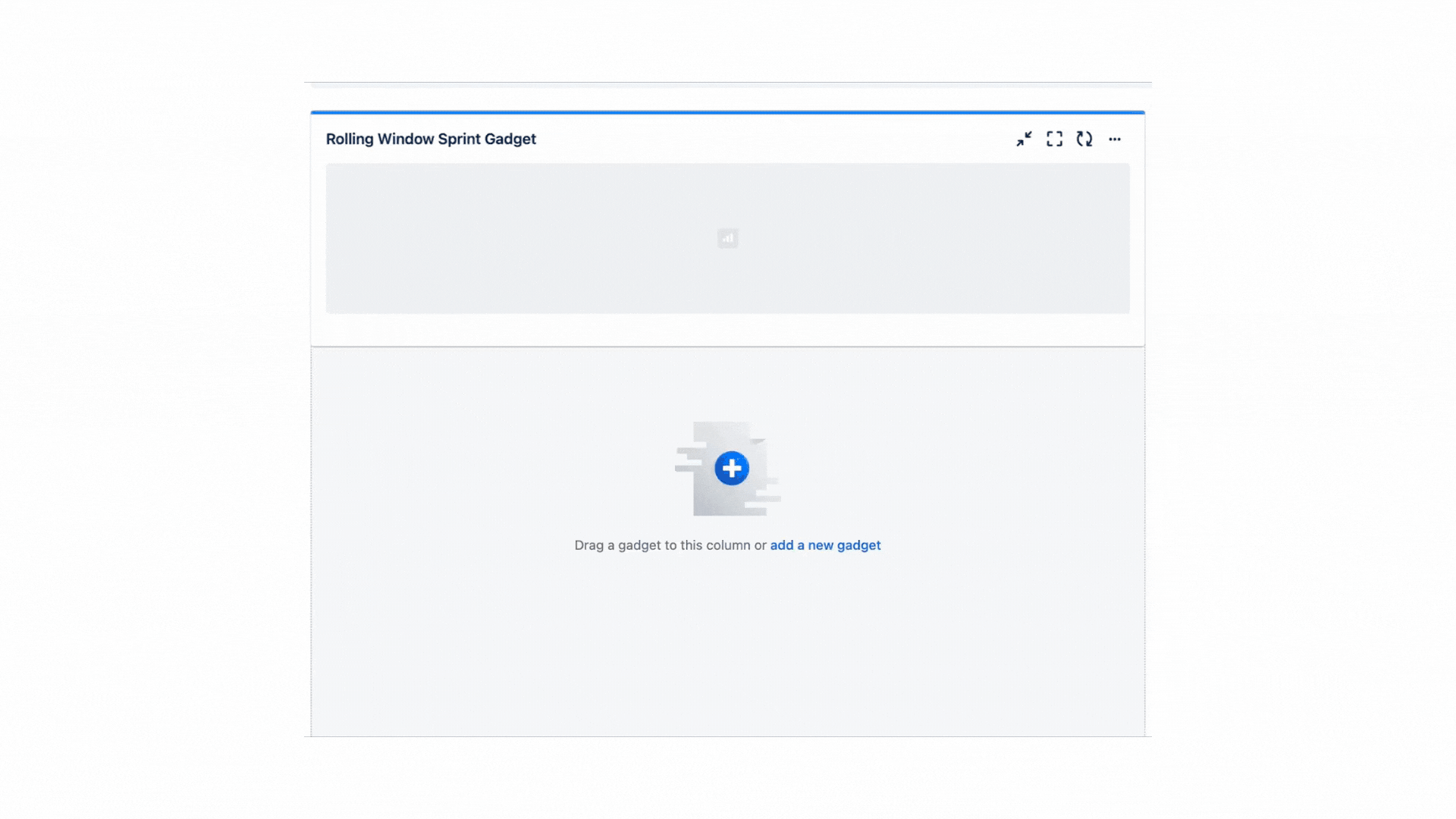

Adding Rolling Window Sprint Gadget to a dashboard

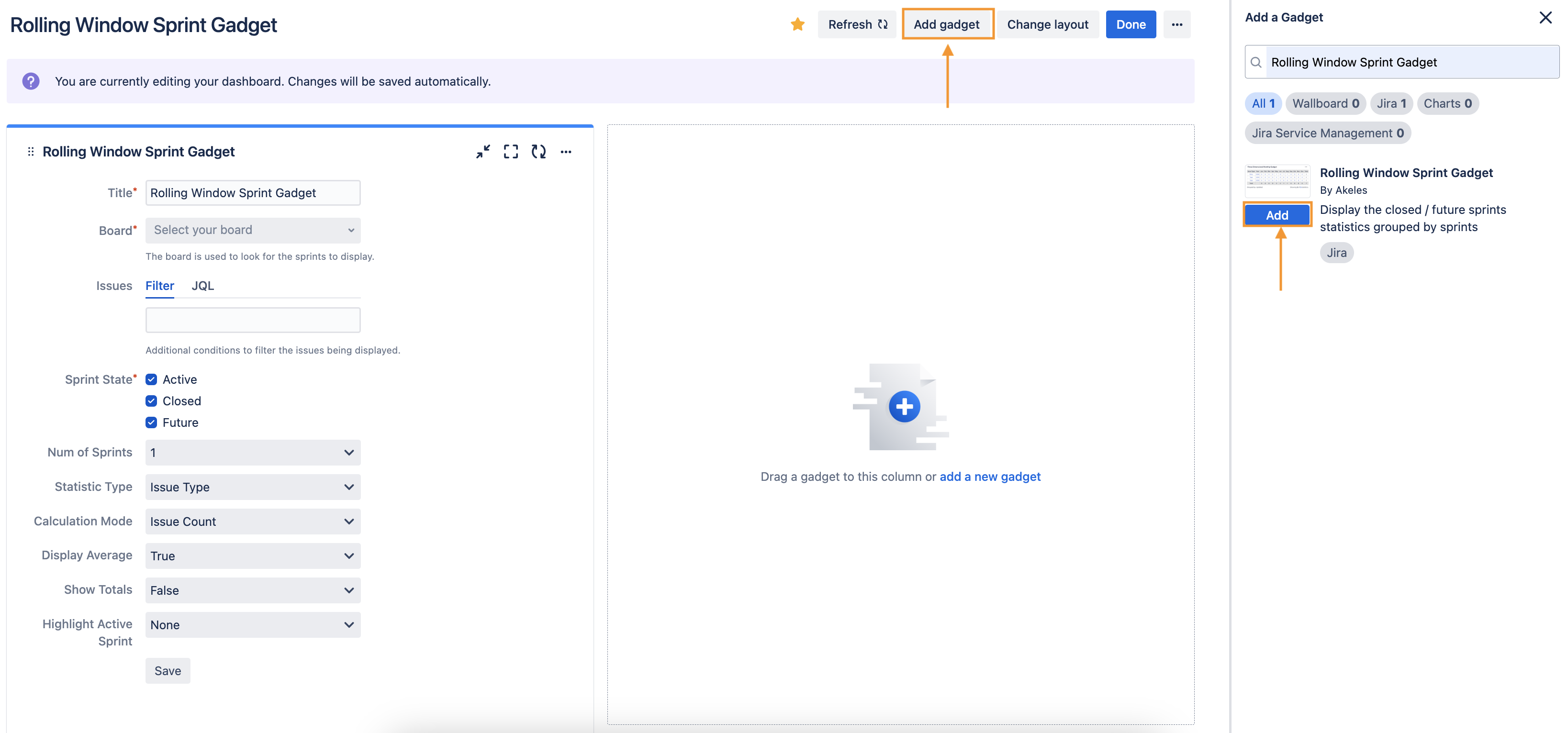

Go to a dashboard and click on Add gadget.
Search for Rolling Window Sprint Gadget and click on Add gadget next to it.

Rolling Window Sprint Gadget configuration

Setting	Description		Default
Title	Title for gadget		Rolling Window Sprint Gadget
Board	Displays the user's list of boards available Used to get sprints
Issues	Additional conditions to filter the issues being displayed
Sprint State	Checkbox for user to select sprint state Active Closed Future		Active Closed Future
Statistics Type	The issue field to be used for dividing the issues into different category rows		Issue Type
Calculation Mode	The calculation mode field to get value: Issue Count Locked forms Open forms Original estimate Remaining Estimate Story Points Story points estimate Submitted forms Time Spent Total forms Work Ratio ∑ Original Estimate ∑ Remaining Estimate ∑ Time Spent	The operator: Sum Average Minimum Maximum ^{*Not applicable for}^{Issue Count}	Issue Count
Display Average	Whether to calculate the average and display the trend indicator True False		True
Show Totals	Whether to show totals for the table True False		False
Highlight Active Sprints	Whether to highlight current sprint for ease of identifying None Red Orange Green Teal Blue Purple Gray		None

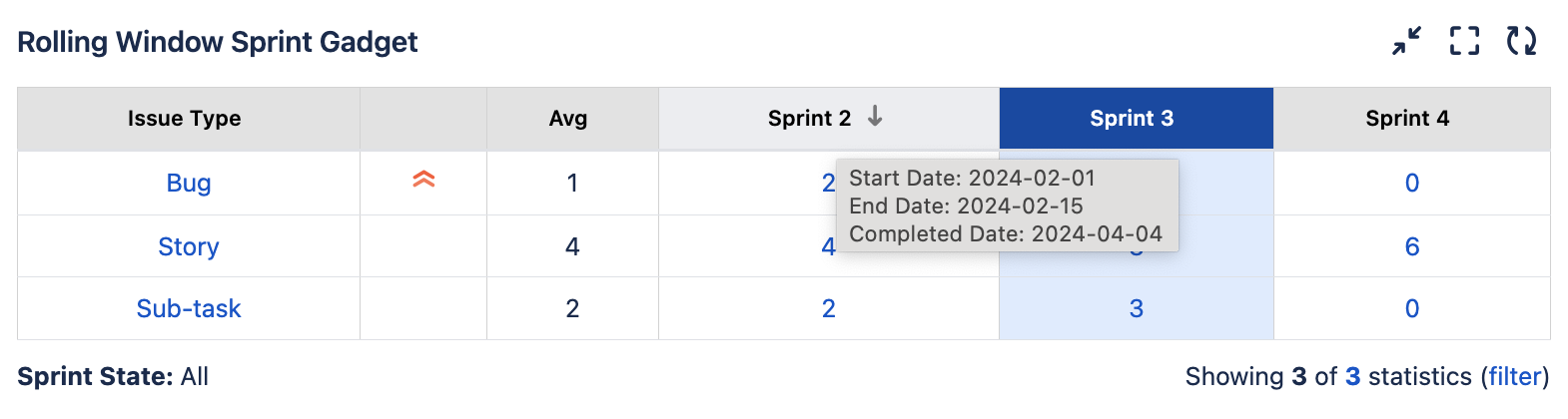

*BONUS TIP* Hover over sprint names for start, end, and completion dates! 🗓️
