Configuring Rolling Window Monthly Gadget

Rolling Window Monthly Gadget overview

The Rolling Window Monthly Gadget allows you to see the number of matching issues for the last / next X months depending on the period type selected.

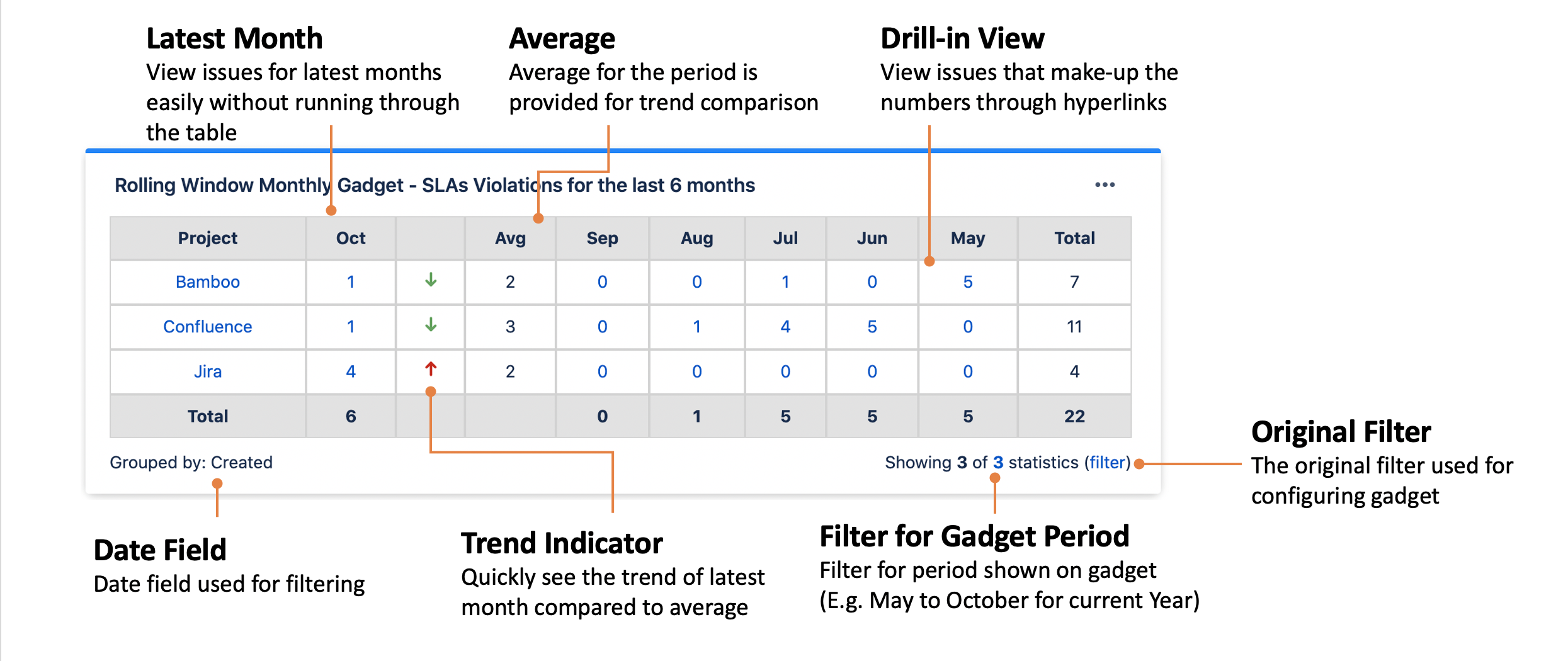

Rolling Window Monthly Gadget overview.png

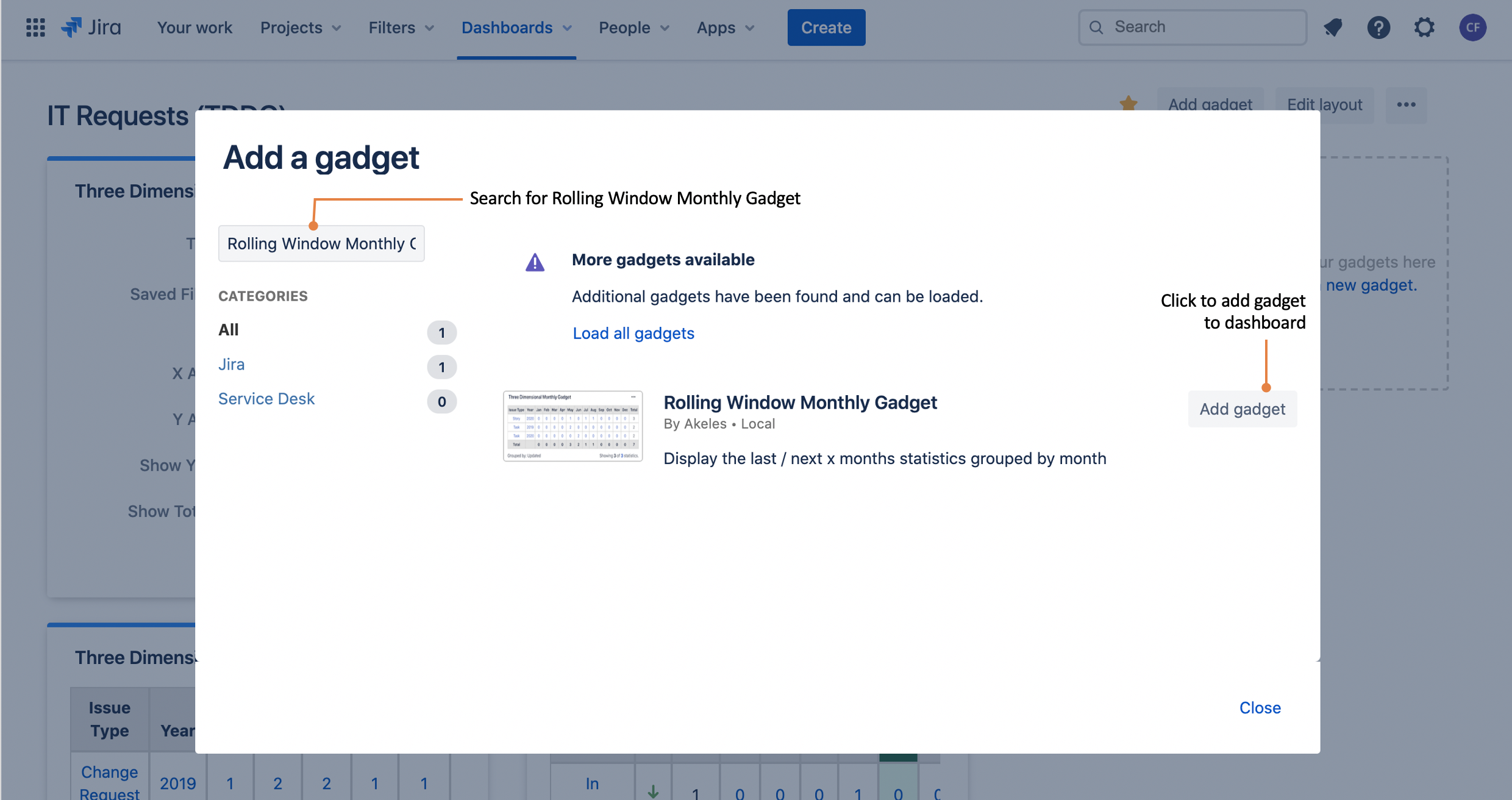

Adding Rolling Window Monthly Gadget to a dashboard

Go to a dashboard and click on Add gadget.
Search for Rolling Window Monthly Gadget and click on Add gadget next to it.

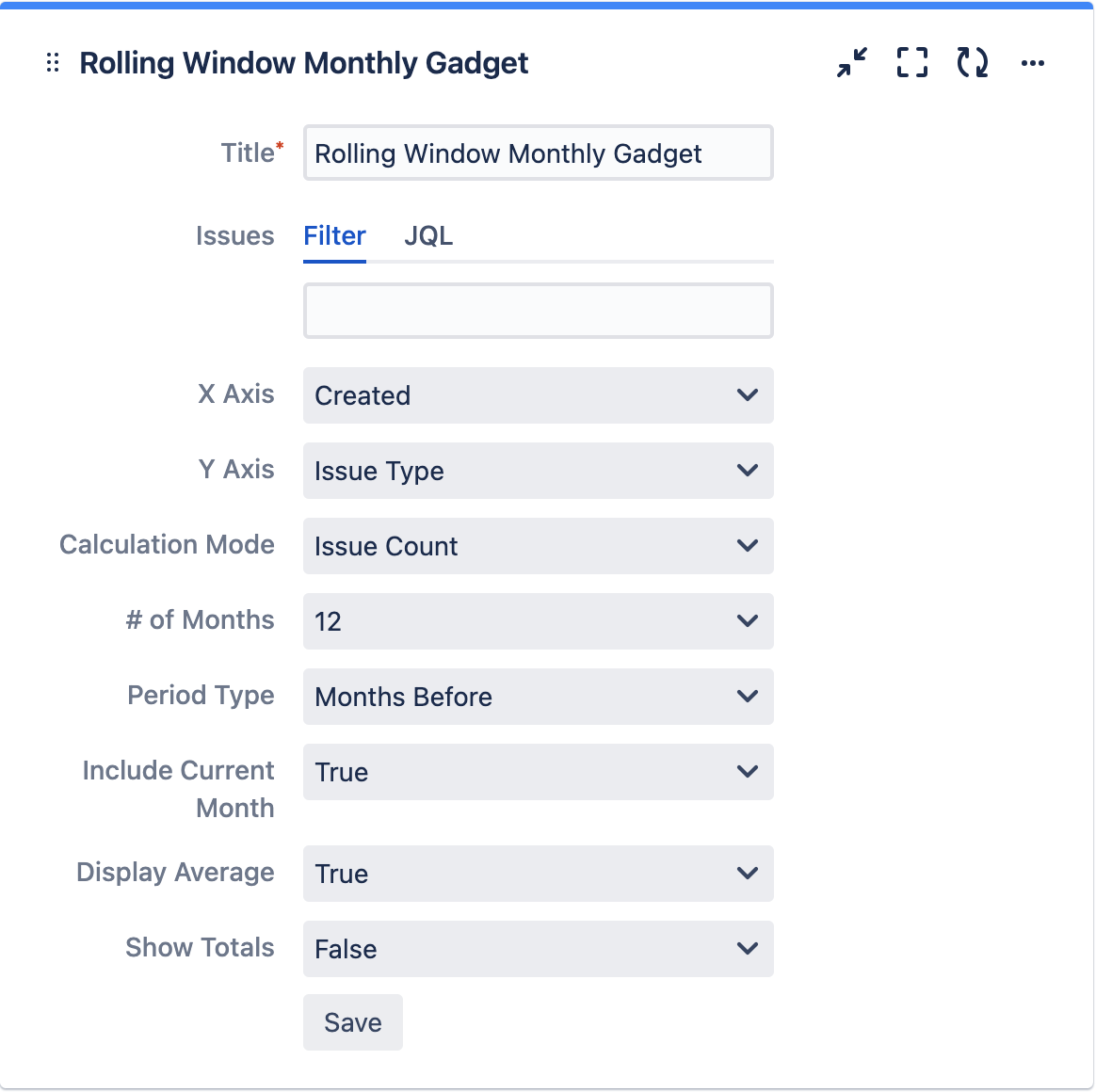

Rolling Window Monthly Gadget configuration

Setting	Description		Default
Issues	Filter or JQL can now be selected to search for issues
X Axis	The date field to be used for segmenting the issues across the months in the year		Created
Y Axis	The issue field to be used for dividing the issues into different category rows		Issue Type
Calculation Mode	The calculation mode field to get value: Issue Count Original Estimate Remaining Estimate Time Spent Σ Original Estimate Σ Remaining Estimate Σ Time Spent Number custom fields	The operator: Sum Average Minimum Maximum ^{*Not applicable for}^{Issue Count}	Issue Count
# of Months	Number of months to display in the table 3 6 9 12		12
Period Type	Whether to display results for past months or future months Months Before Months After		Months Before
Include Current Month	Whether to include the current month. If false, it will start counting backwards from the previous month or forward from next month True False		True
Display Average	Whether to calculate the average and display the trend indicator True False		True
Show Totals	Whether to show totals for the table True False		False
