Multiple Filters Chart Gadget
Multiple Filters Chart Gadget
Breadcrumbs

Release Notes for 4.7.0/5.7.0

For Jira 8, please use version 5.7.0.

For Jira 7, please use version 4.7.0.

Summary

New Features

Support JQL

You can now enter JQL in the gadget configuration. With this, you do not need to create filters beforehand and end up with too many filters.

Before (Filter Only)

After (Filter and JQL)

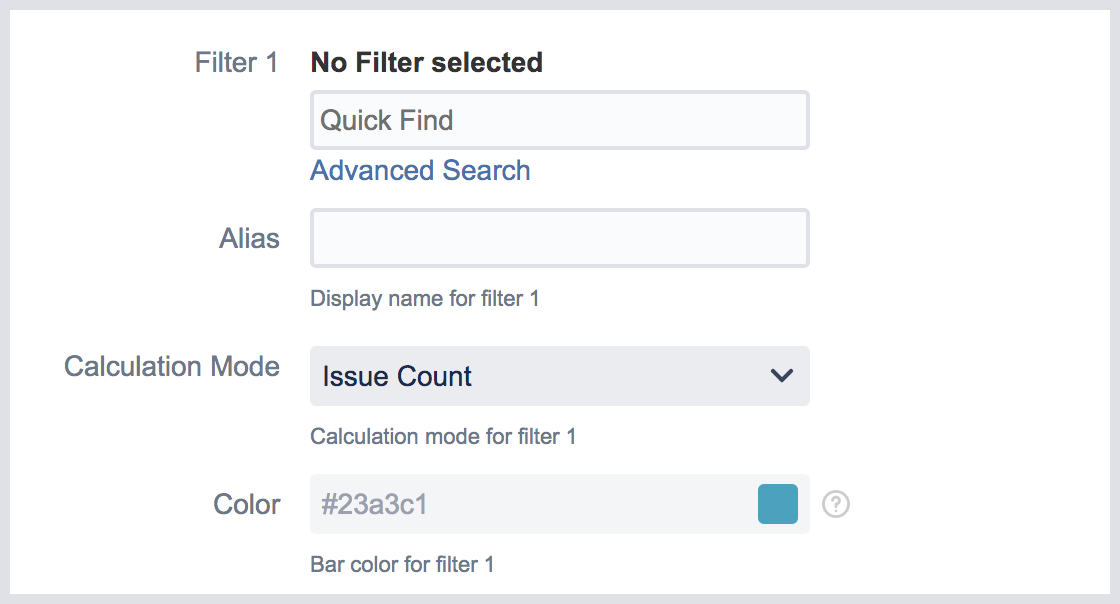

mchart filter picker.png

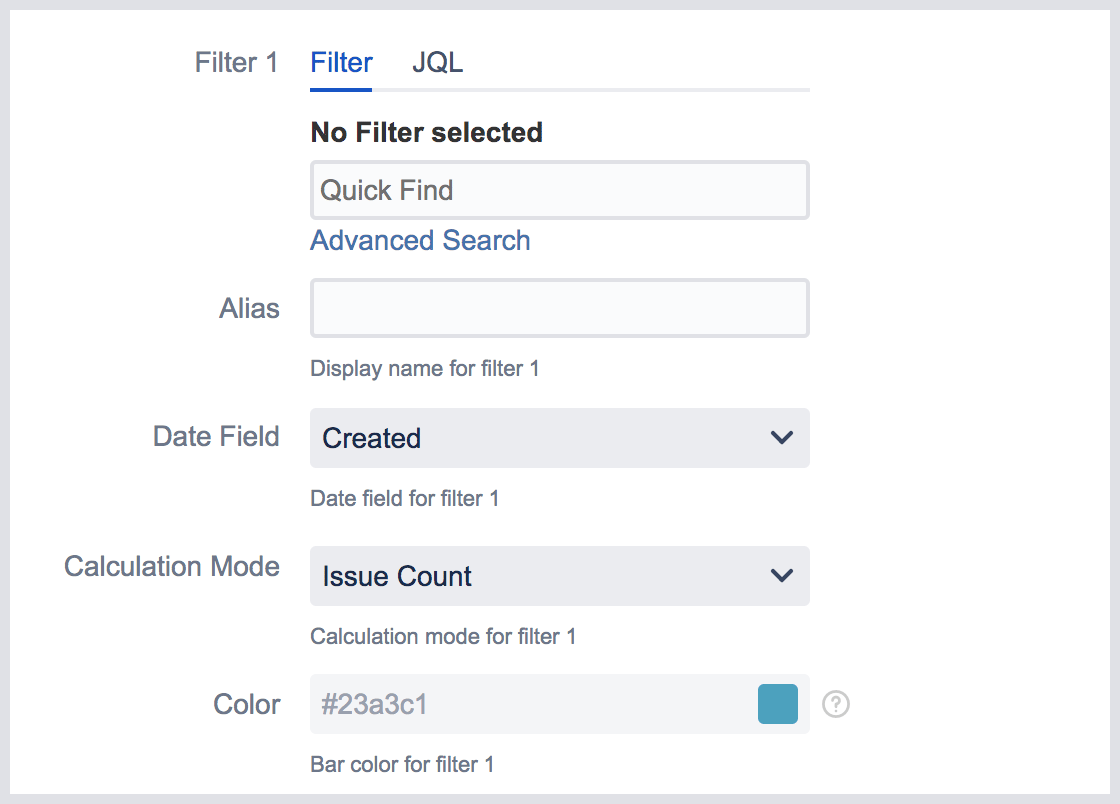

mchart filter picker and jql.gif

Show Totals

You can now choose to show totals for rows, columns or both in the data table.

Before

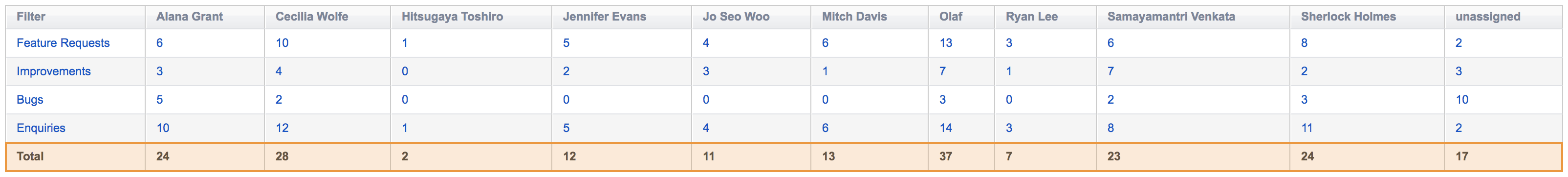

mchart data table total rows only.png

Sum Up Rows

  • Yes

  • No

After

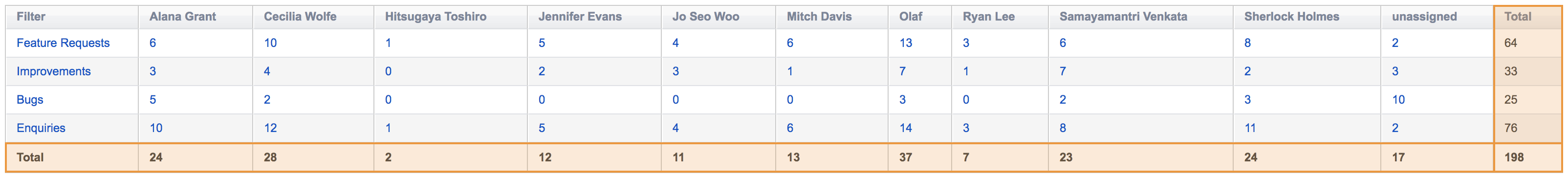

mchart data table total rows and cols.png

Show Totals

  • Yes

  • Yes (Columns Only)

  • Yes (Rows Only)

  • No

Bug Fixes

Incorrect min, max and average values

For Months in Group > 1, the max/average values of months in the same group are just sum up, whereas the min is always 0 even if all the issue values are positive.

Before

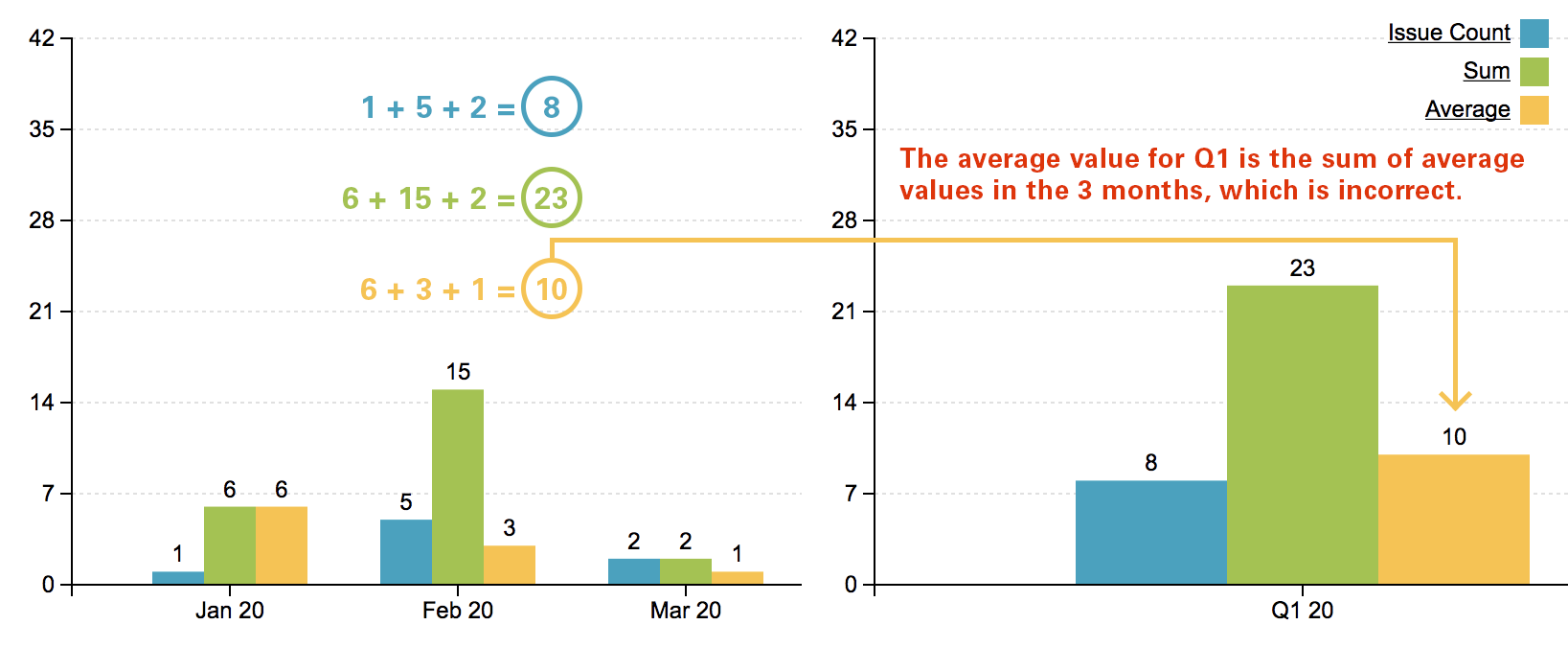

mchart average value incorrect.png

After

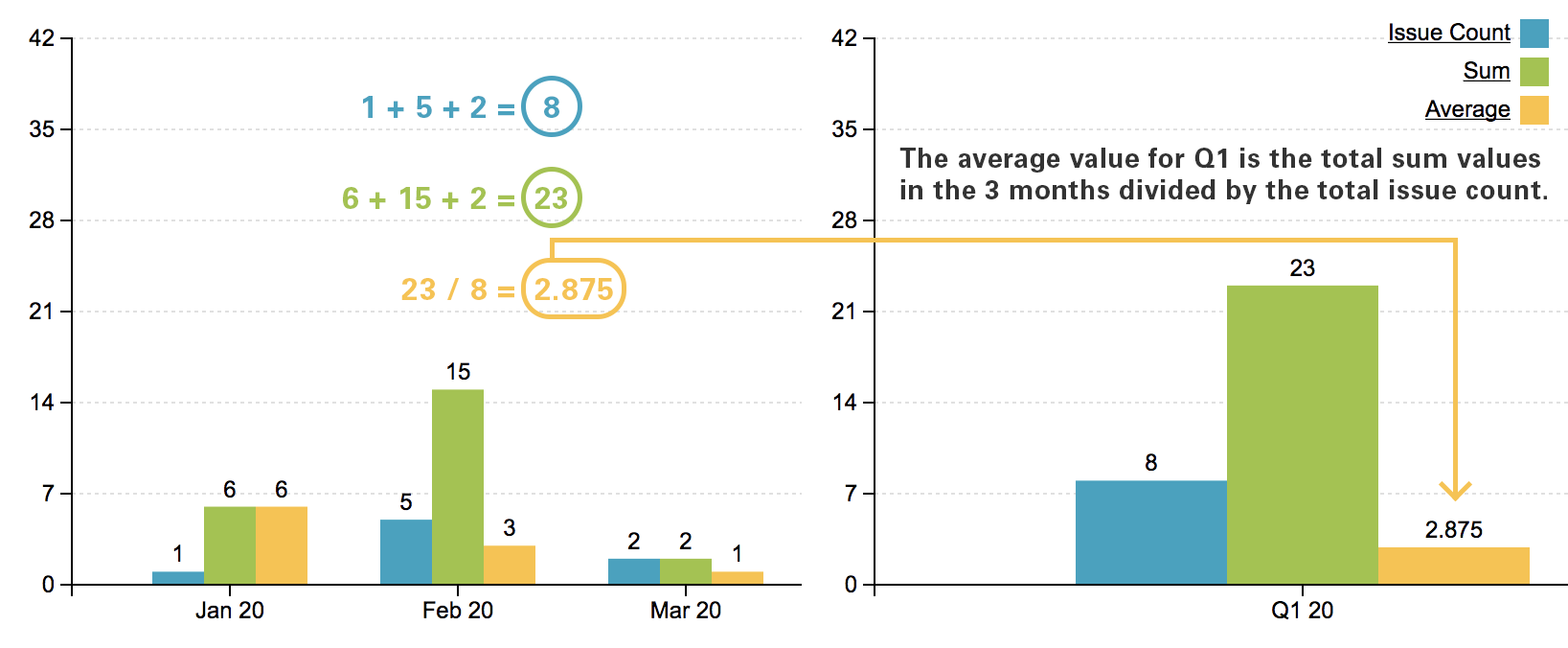

mchart average value.png


For Text Field (single line) custom fields using Exact Text Searcher (natural), the JQL is invalid if text value contains space or special characters, due to missing quotes.

Before

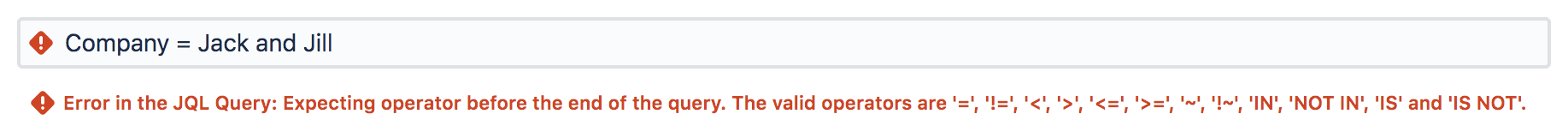

mchart text field exact text searcher invalid jql.png

After

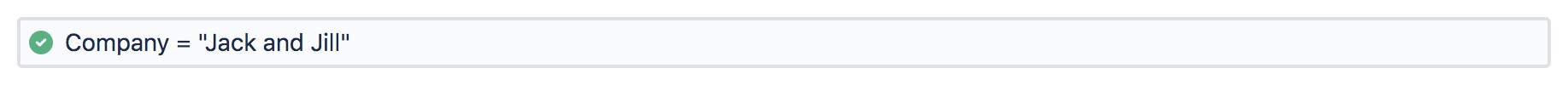

mchart text field exact text searcher valid jql.png

Issues

Key

Summary

T

P

Status

Resolution

Affected Versions

Data cannot be retrieved due to an unexpected error.

View these issues in Jira
