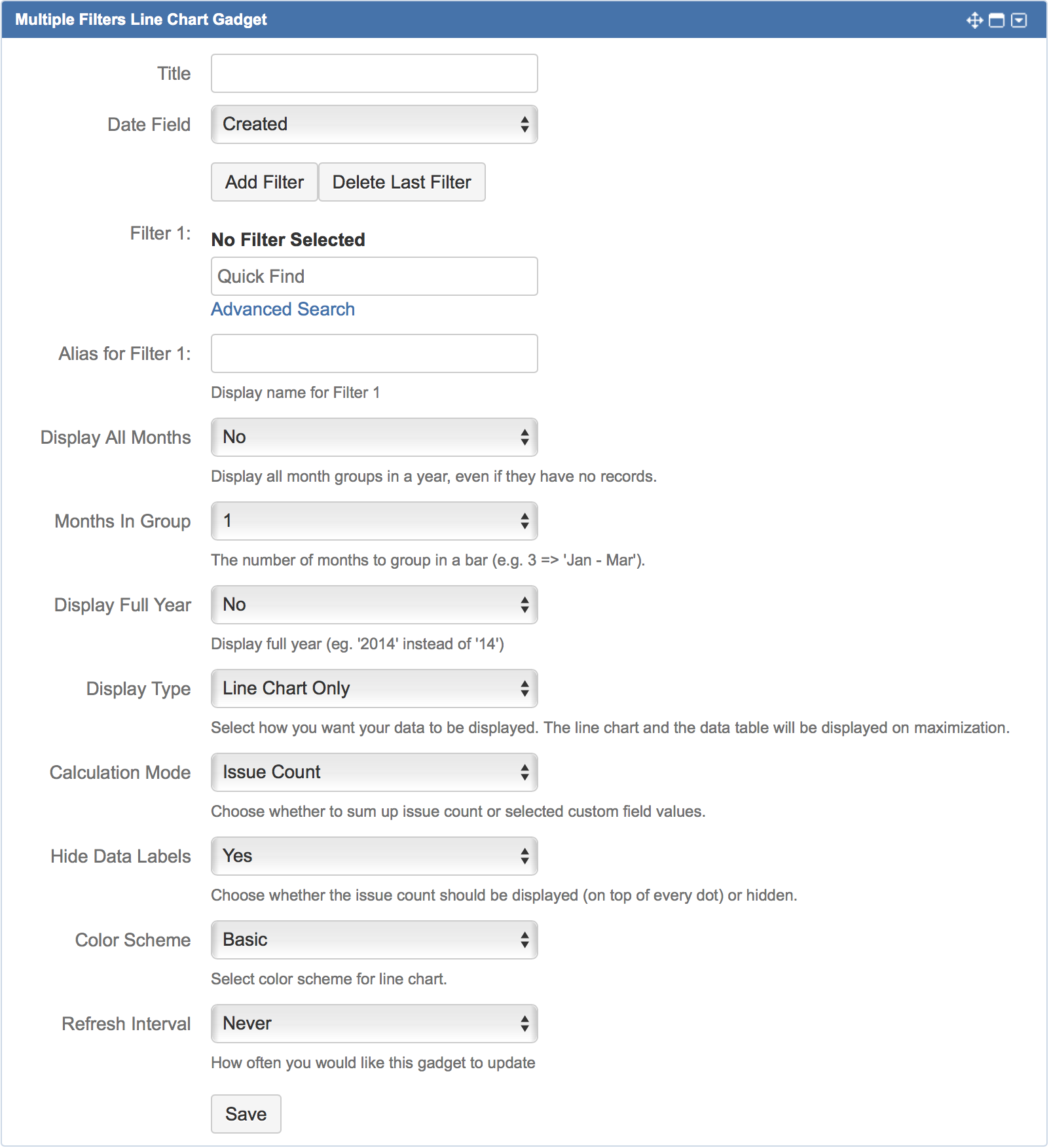

How to Configure Multiple Filters Line Chart Gadget 1.x

Title

Enter title for the gadget.

Date Field

Created

Select the date field to plot as the x-axis of the line chart:

• Created

• Updated

• Resolved

• Due Date

• Custom Date Picker or Date Time Picker fields

Add Filter

Click to add another filter.

Delete Last Filter

Click to delete the last filter.

Filter n

Choose the filter(s) to plot the line chart.

Alias for Filter n

Define an alias for the filter(s) to be displayed in the legend.

If undefined, filter name will be displayed.

Display All Months

No

Select whether to display all months in the chart regardless of the value:

• Yes (Display all months, even if there is no value)

• No (Display months with values only)

Months In Group

1

Select the number of months to be grouped together:

• 1

• 2

• 3

• 4

• 6

• 12

E.g. 4 months in group: Jan ― Apr, May ― Aug, Sep ― Dec.

Display Full Year

No

Select whether to display the full year:

• Yes ('2008' for year 2008)

• No ('08' for year 2008)

Display Type

Line Chart Only

Select the display type of the gadget:

• Line Chart Only

• Data Table Only

• Line Chart and Data Table

Calculation Mode

 Issue Count

Select the calculation mode of the filters:

• Issue Count

• Custom Number fields

Hide Data Labels

Yes

Select whether to hide the values:

• Yes

• No

Color Scheme

Basic

Select a color scheme for the line chart:

• Basic

• Contrasting

• Shades

• Warm
