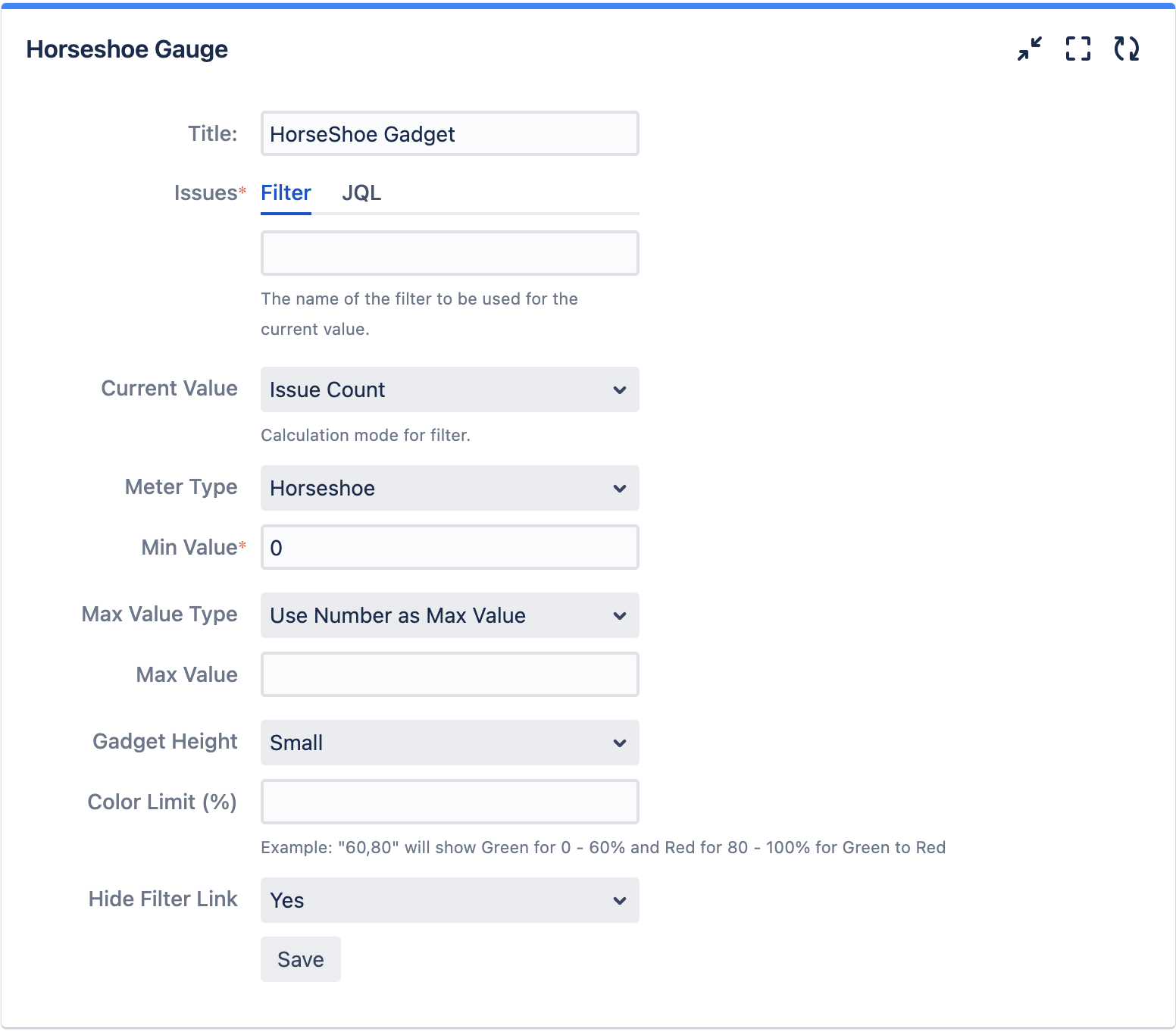

Configuring Horseshoe Gadget

Title

The title of the gadget

Issues

Filter or JQL can be used to search to display the number of issues shown in the gauge gadget

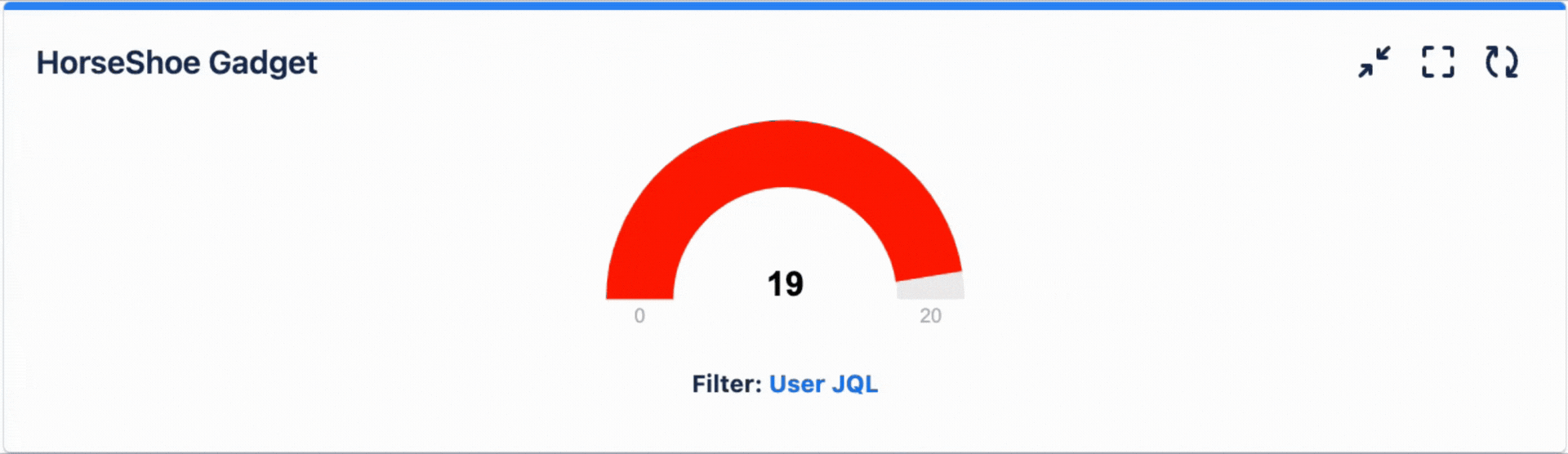

Meter Type

The type of gauge to be displayed. There are a total of 5 different gauges:

• Horseshoe – As the number of issues increases, it changes from Green to Yellow to Red

• Horseshoe (Reverse)  – As the number of issues increases, it changes from Red to Yellow to Green

• Horseshoe in % - Similar to Horseshoe except gauge value in normalised %

• Horseshoe in % (Reverse) - Similar to Horseshoe (Reverse) except gauge value in normalised %

• Speedometer

Min Value

The minimum value of the gauge

Max Value Type

The type of maximum value for the gadget

• Fixed value (Use Number as Max Value)

• Based on number of issues in another filter (Use Filter as Max Value)

Max Value
(For Use Number as Max Value option)

The maximum value of the gauge

Max Value Filter

(For Use Filter as Max Value option)

The filter in which the number of issues will be displayed in the gauge as the maximum value

Gadget Height

The height of the gadget and gauge will scale based on the height of the gadget
