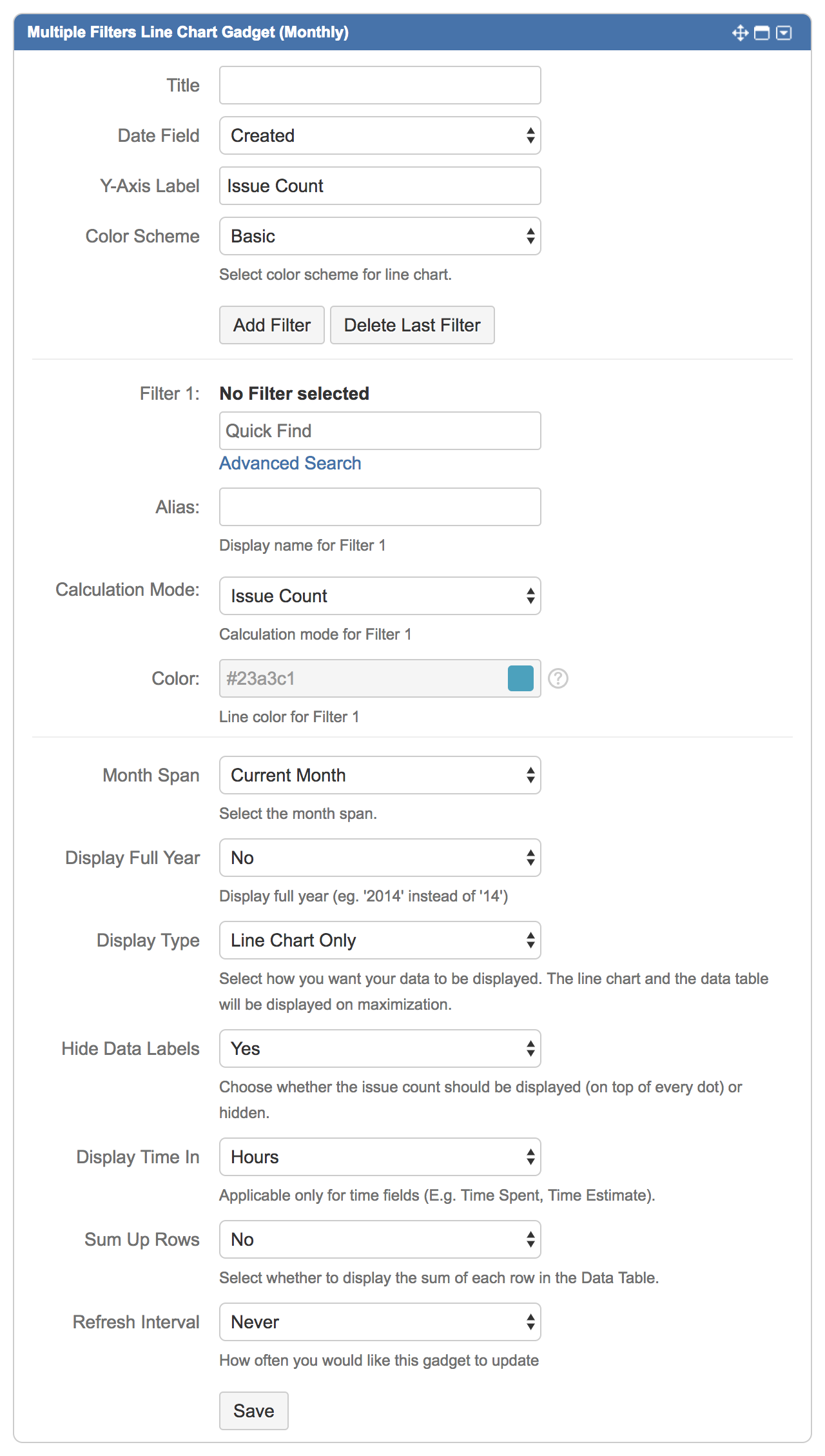

How to Configure Multiple Filters Line Chart Gadget (Monthly) 2.x / 3.x

Title

Enter title for the line chart window.

Date Field

Created

Select the Issue Field (of Date Type) to plot as the X-axis of the line chart.

Y-Axis Label

Issue Count

Define the Y-axis label to be displayed.

Color Scheme

Basic

Select a color scheme:

• Basic

• Contrasting

• Shades

• Warm

• Custom

Add Filter

Click to add another filter.

Delete Last Filter

Click to delete the last filter.

Filter n (max. 12)

Choose the filter(s) to be displayed in the line chart.

Alias for Filter n

Define an alias for the filter(s) to be displayed in the legend.

If undefined, filter name will be displayed.

Calculation Mode for Filter n

Issue Count

Select the calculation mode:

• Same as Filter 1 (Available for Filter 2 onwards)

• Issue Count

• Time Spent

• Time Estimate

• Time Original Estimate

• Custom Fields

Select the calculation operator:

• Sum

• Average

• Minimum

• Maximum

^{*Not applicable for Issue Count and Same as Filter 1 option.}

Color for Filter n

Pick a color for the line.

^{*Configurable only if Color Scheme is set to Custom.}

Month Span

Current Month

Select the month span to display:

• Current Month

• Last Month

Display Full Year

No

Select the display format of the Year:

• Yes (E.g. Year 2016 will be displayed as "2016")

• No (E.g. Year 2016 will be displayed as "16")

Display Type

Line Chart Only

Select the display type of the gadget:

• Line Chart Only

• Data Table Only

• Line Chart and Data Table

Hide Data Labels

Yes

Select whether to display or hide the values:

• Yes

• No

Display Time In

Hours

Select how the time should be displayed:

• Hours

• Days

• Weeks

^{*Applicable for Time Fields only.}

Sum Up Rows

No

Select whether to display the sum of each row in the Data Table:

• Yes

• No

^{*Applicable only if Data Table is displayed.}

Refresh Interval

Never

Select how often (how many minutes interval) the line chart should be refreshed:

• Never

• Every 15 minutes

• Every 30 Minutes

• Every 1 hour

• Every 2 hours
