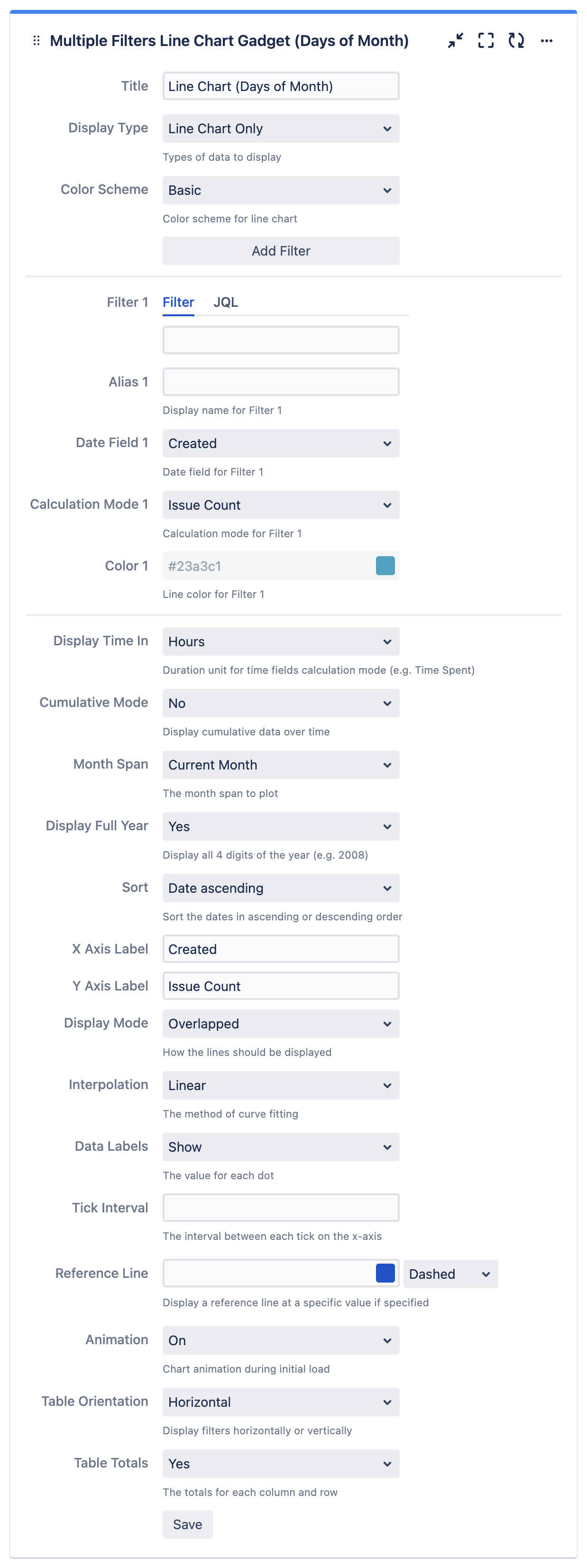

Configuring Multiple Filters Line Chart (Days of Month) Gadget

Title

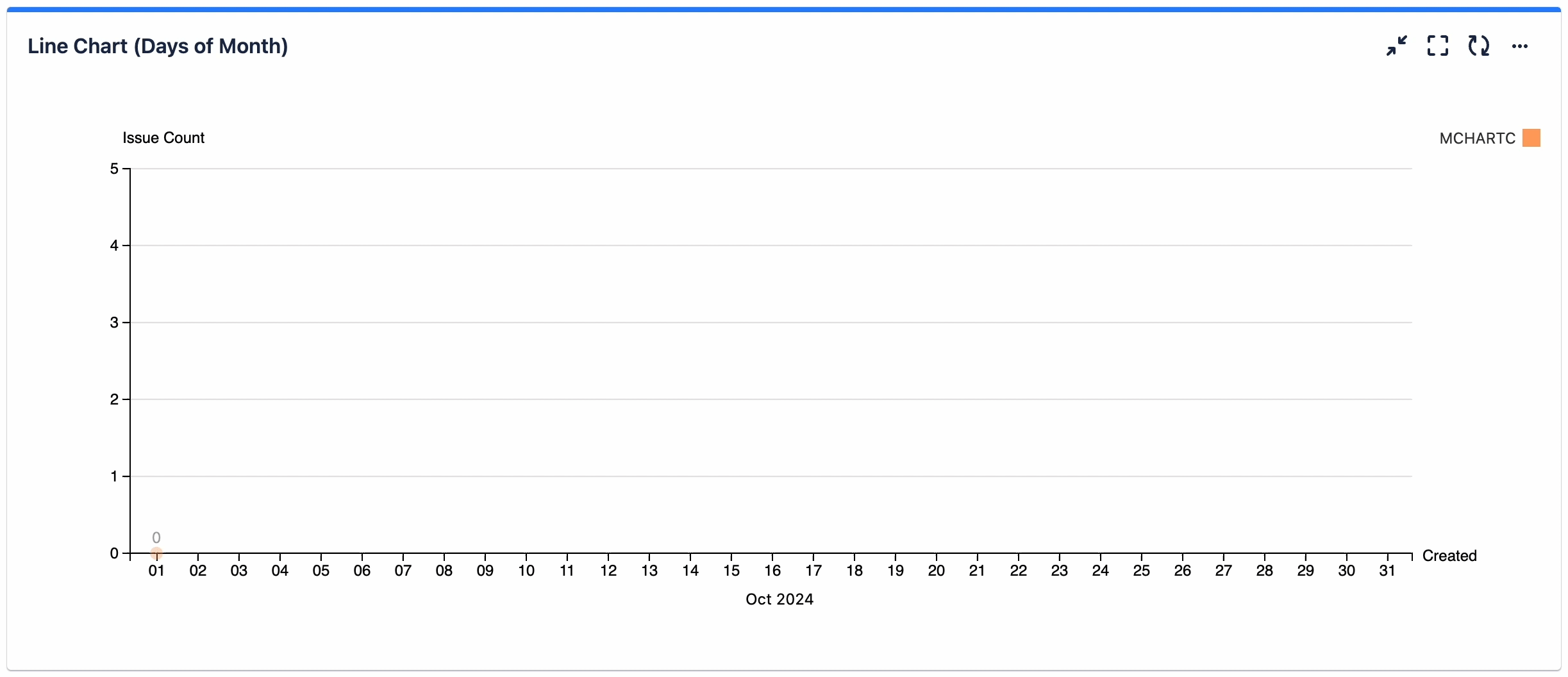

Line Chart (Days of Month)

The title of the gadget

Display Type

Line Chart Only

The types of data to display:

• Line Chart Only

• Data Table Only

• Line Chart and Data Table

Color Scheme

Basic

The color scheme for line chart:

• Basic

• Contrasting

• Shades

• Warm

• Custom

Add filter

Click to add filter

^{*Maximum of 12 filters}

Filter n

Select filter or enter JQL

Alias n

The display name for filter n

Date Field n

Created

The date field for filter n:

• Created

• Updated

• Resolved

• Due Date

• Custom fields:

  • Date picker

  • Date time picker

Calculation Mode n

Issue Count

The calculation mode for filter n:

• Same as Filter 1 (For filter 2 onwards)

• Issue Count

• Time Spent

• Time Estimate

• Time Original Estimate

• Custom fields:

  • Number field

The operator:

• Sum

• Average

• Minimum

• Maximum

^{*Not applicable for Issue Count and Same as Filter 1}

Color n

The line color for filter n.

^{*Configurable only if Color Scheme is set to Custom}

Display Time In

Hours

The duration unit for time fields calculation mode:

• Hours

• Days

• Weeks

^{*Applicable for Time Fields only (e.g. Time Spent)}

Cumulative Mode

No

Whether to display cumulative data over time:

• Yes

• No

Month Span

Current Month

The month span to plot:

• Current Month

• Last Month

Display Full Year

Yes

Whether to display all 4 digits of the year (e.g. 2008):

• Yes

• No

Sort

Date ascending

Sort the dates in ascending or descending order:

• Date ascending

• Date descending

X Axis Label

Created

The x-axis label for the chart

Y Axis Label

Issue Count

The y-axis label for the chart

Display Mode

Overlapped

How the lines should be displayed:

• Overlapped

• Side by side

Interpolation

Linear

The method of curve fitting:

• Linear

• Monotone

Data Labels

Show

Whether to show/hide the value above each dot:

• Show

• Hide

Tick Interval

The interval between each tick on the y-axis

Reference Line

Enter a value to display the reference line

Click on the colored square to select color

The style of the reference line:

• Dashed

• Dotted

• Solid

Animation

On

The chart animation during initial load:

• On

• Off

Table Orientation

Horizontal

Whether to display filters horizontally or vertically:

• Horizontal

• Vertical

Table Totals

Yes

The totals for each column and row:

• Yes

• Yes (Columns Only)

• Yes (Rows Only)

• No
