User Guide for CQL Search Table Macro
Introduction
Similar to https://akeles.jira.com/wiki/spaces/CQLC/overview?homepageId=2411692199#CQL-Search-Macro , this macro allows you to execute contextual searches with predefined CQL.
Results are displayed in a table with configurable columns.
Configuration
Field Name | Required | Default Value | Explanation | Additional Information |
---|---|---|---|---|
CQL | Enter a CQL statement with $$query$$ or $$query*$$ as the search term. | |||
Default Term | Enter a default query term to replace the $$query$$ in CQL. | |||
Search Type | Contains | The searching can done with three type searches.
| ||
No. of Results per Page | 10 | Select the no. of results to be displayed:
If there are more results than the selected no. of results to display, pagination will occur. | ||
Custom "No Results Found" message | Enter a customised message when no results are found. | |||
Table Template | title, space, modified | Select the template to use for results table.
Separate template values using ",". See default value for example. | ||
Template Header | Enter customised headers to replace default template header. If not provided or provided incorrectly, specified header will not be applied. | |||
Search Bar | Show | Indicate whether to display the search bar |
Features

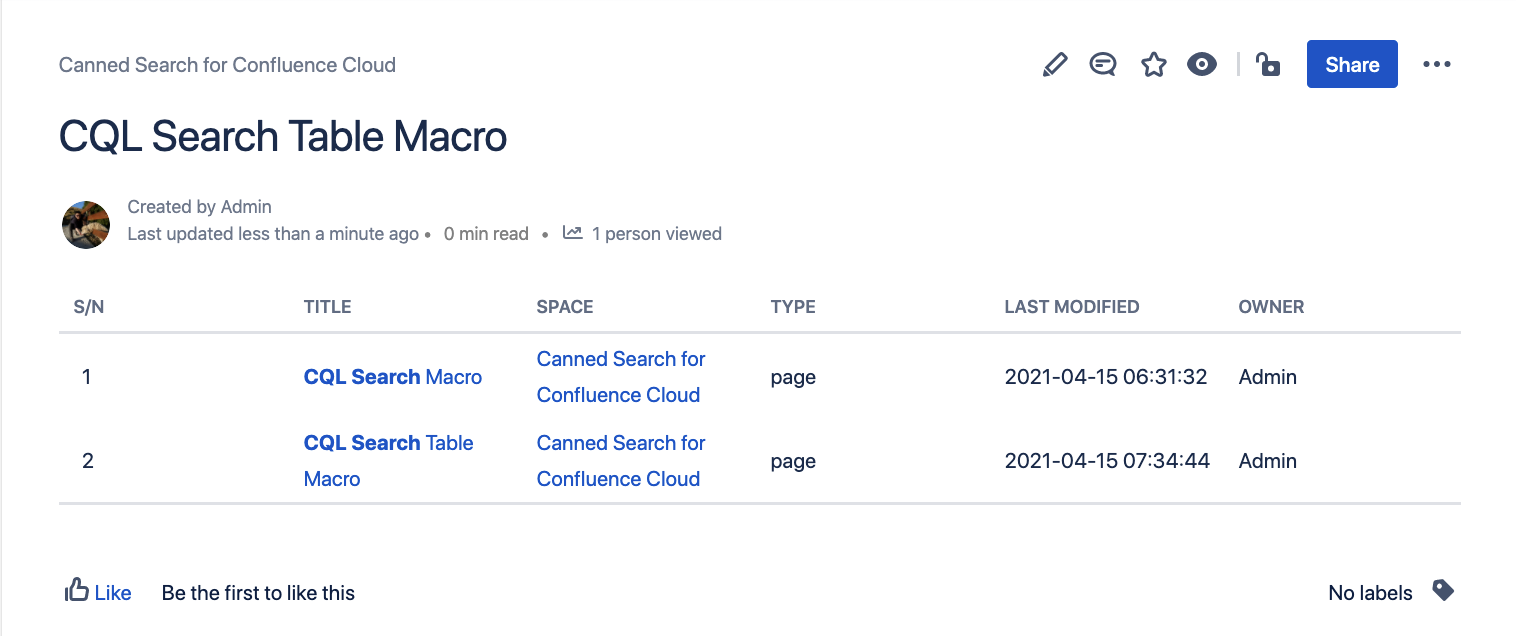

Hidden Search Bar
The search bar can be hidden to allow page owner to use the macro to create a listing which users can view-only.
Table Template for customising table columns
The available template are as follows:
Available Template Terms | Result |
---|---|
s/n | Index of the record |
title | Shows title of file / page |
space | Shows space where file / page is located |
type | Indicate if item found is an attachment / page |
created | Shows created date |
modified | Shows last modified date |
creator | Shows creator of page / file |
modifier | Shows user who last modified page/ file |
labels | Shows all labels on page |
version | Shows latest available version for file / page |
comments | Shows number of comments on page |
When provided incorrectly, only correct templates will be used
E.g. For template “title, spaces, modified, labels”
“spaces” is incorrect (should be space)
Results will only show table with table headers “title, modified, labels”
E.g. For template “titles, spaces, label, types”
None of the template terms used is correct
Default template will be used to display results (“title, space, modified”)
Template Header for customising table headers
To allow users to customise table headers, a template header field is provided. Users can rename template values to a more suitable value for the results table they are creating.

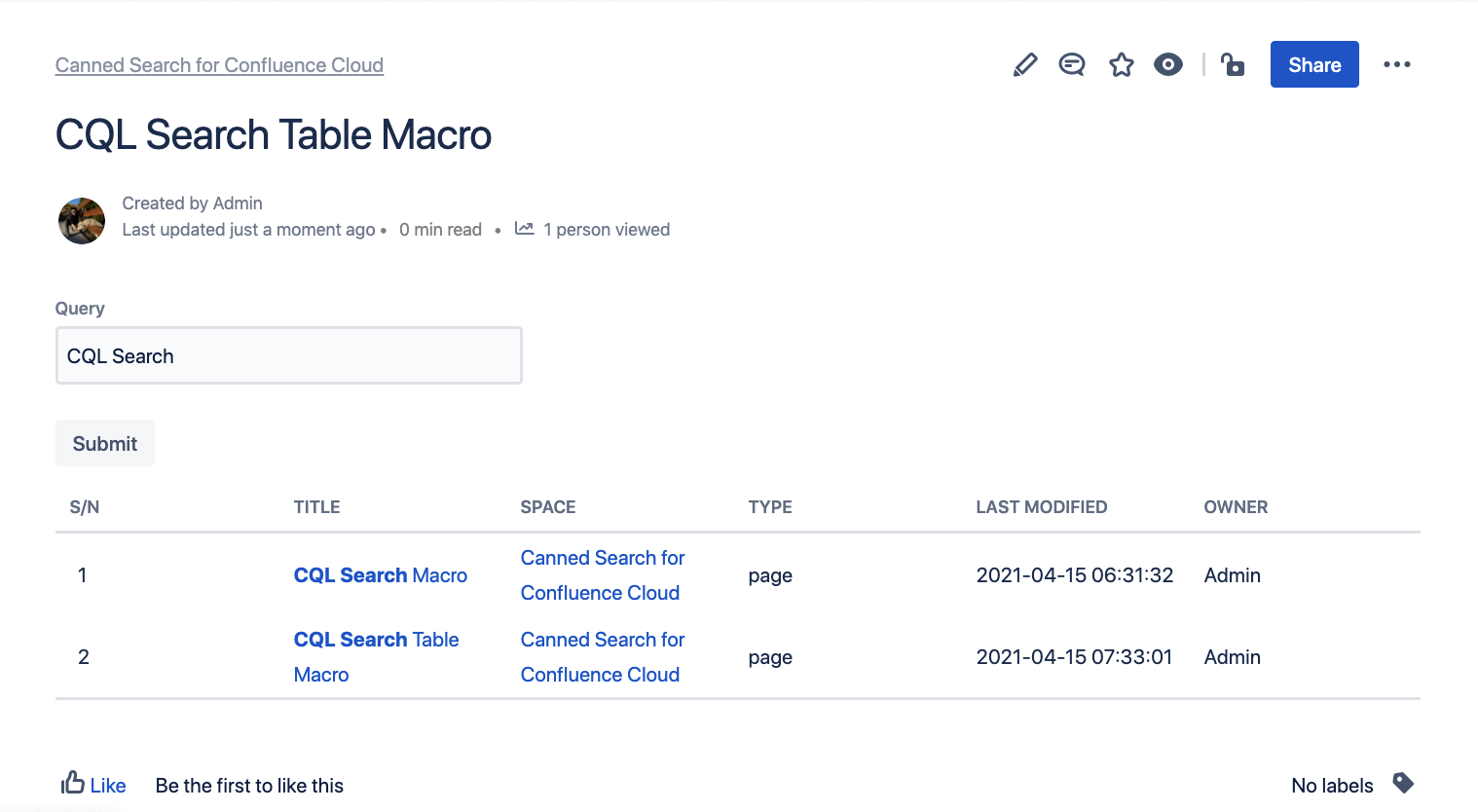

In the example shown above, changes to template header are as follow:
Creator → Owner
Modified → Last Modified
Headers defined incorrectly will result in default template being used (over-defined / under-defined).
E.g. For the template “title, type, creator, modified” , if header “title, type, owner” is defined
Only 3 headers are defined for 4 template (under-defined)
Header defined will be ignored, template “title, type, creator, modified” will be used as header instead.
If no header is defined, template “title, type, creator, modified” will be used.
