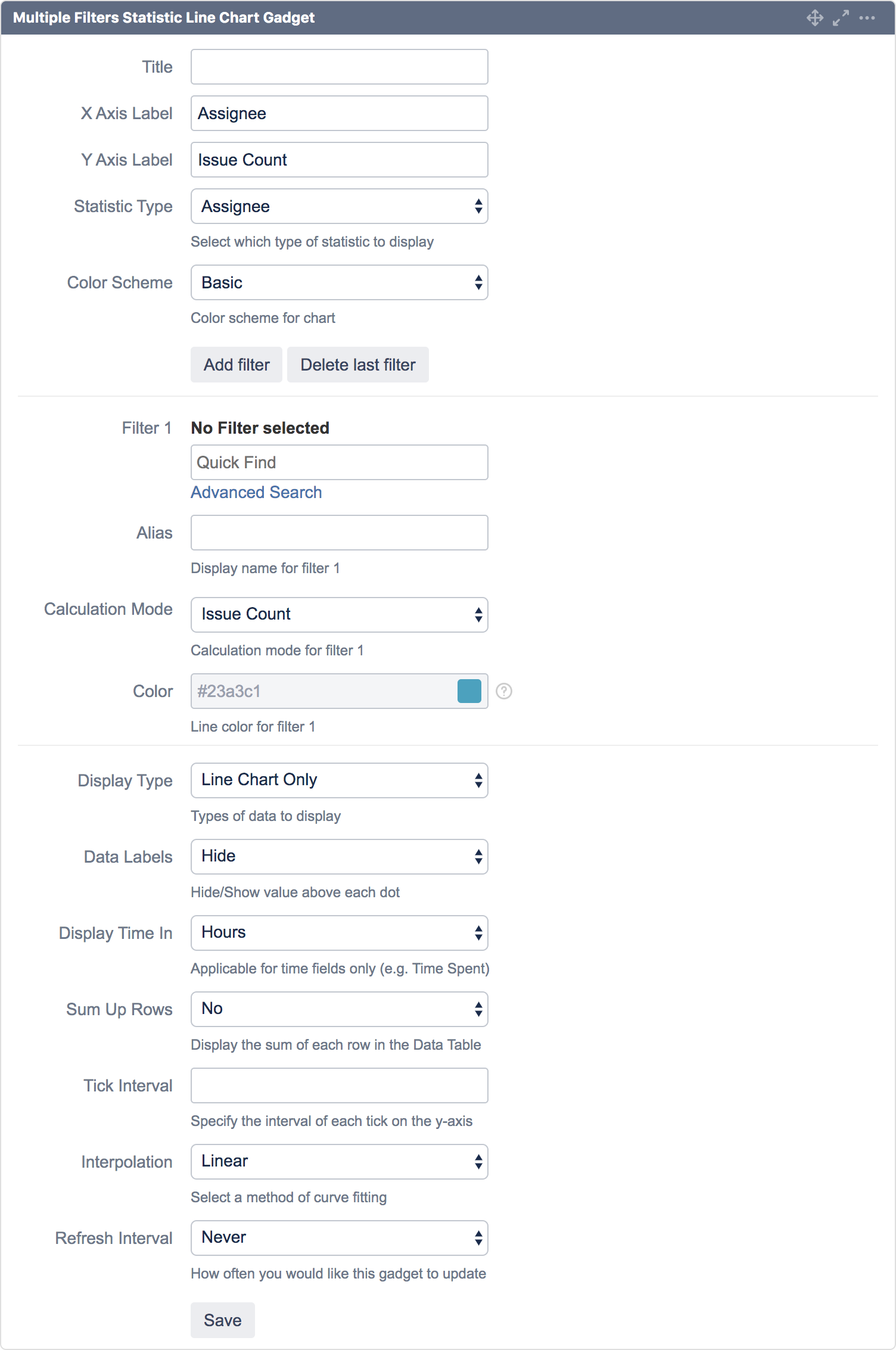

How to Configure Multiple Filters Statistic Line Chart Gadget

Title

Title of the gadget.

X Axis Label

Assignee

Label for x-axis.

Y Axis Label

Issue Count

Label for y-axis.

Statistic Type

Assignee

The statistic type used to plot the line chart.

Color Scheme

Basic

The color scheme of the line chart.

Add Filter

Click to add another filter.

^{*Maximum of 12 filters}

Delete Last Filter

Click to delete the last filter.

Filter n

JQL input added in version 4.7.0/5.7.0

The filter or JQL used to plot the line chart.

Alias n

The display name for the selected filter.

If undefined, the filter name will be used.

Calculation Mode n

Calculation mode:

• Same as Filter 1

• Issue Count

• Time Spent

• Time Estimate

• Time Original Estimate

• Custom Number fields

Operator:

• Sum

• Average

• Minimum

• Maximum

^{*Not applicable for Issue Count and Same as Filter 1 calculation mode.}

Color n

The color for the selected filter’s line.

^{*Configurable only if Color Scheme is set to Custom.}

Display Type

The display type of the gadget:

• Line Chart Only

• Data Table Only

• Line Chart and Data Table

Data Labels

The data labels of each bar:

• Show

• Hide

Display Time In

To display time in:

• Hours

• Days

• Weeks

^{*Applicable for Time Fields only.}

Show Totals

No

Previously named "Sum Up Rows" with "Yes" and "No" options
Renamed in version 4.7.0/5.7.0 with additional options

Display the total for each row and/or column in the Data Table:

• Yes

• Yes (Columns Only)

• Yes (Rows Only)

• No

^{*Applicable if Data Table is displayed.}

Table Orientation

Vertical

Added in version 4.5.0/5.5.0

Select whether to display the filters vertically or horizontally in the Data Table:

• Horizontal

• Vertical

Tick Interval

The interval of each tick on the y-axis.

Interpolation

Linear

The method of interpolation for the line:

• Linear

• Monotone
