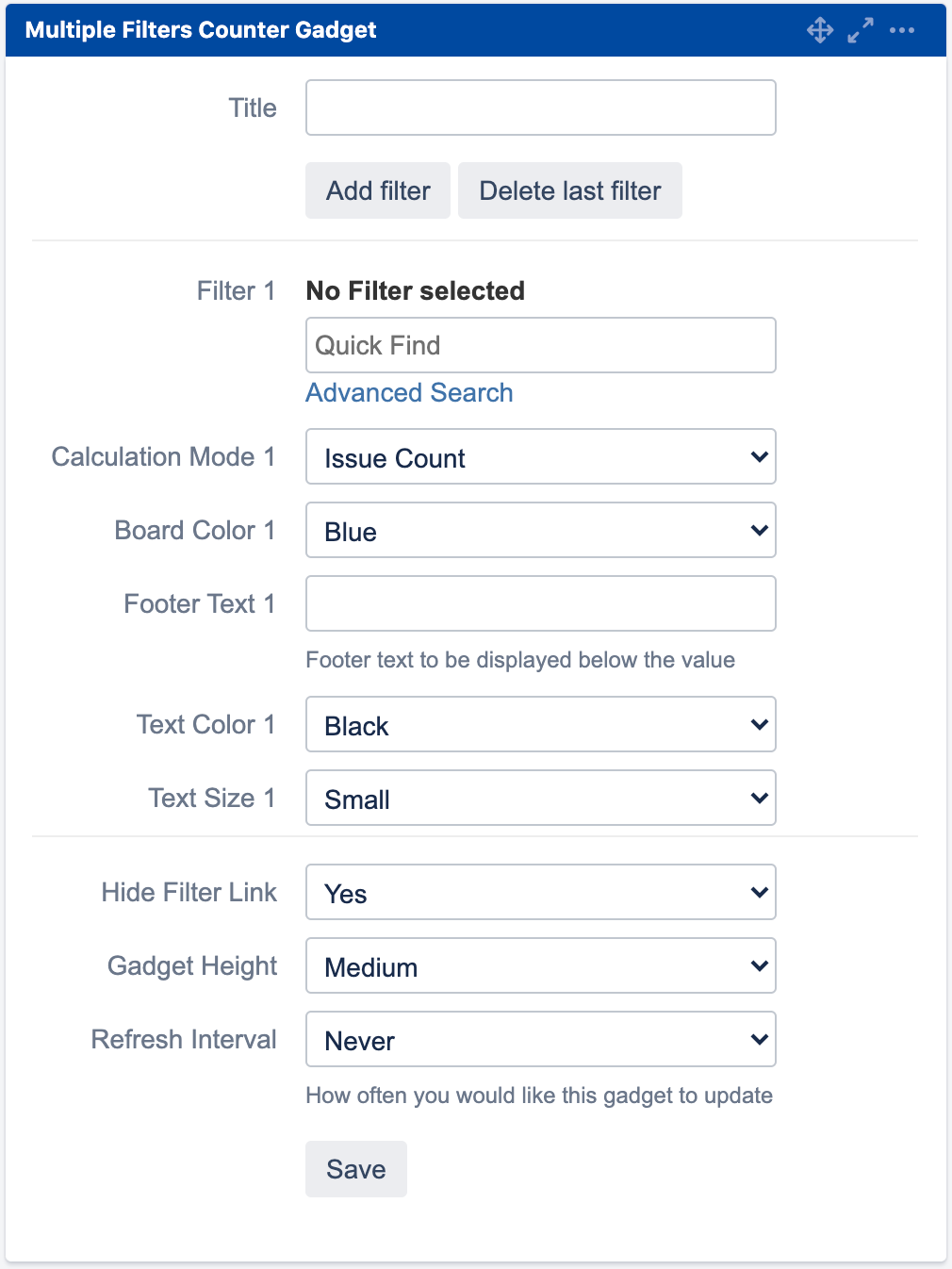

How to Configure Multiple Filters Counter Gadget

Title

Title of the gadget.

Add Filter

Click to add another filter.

^{*Maximum of 12 filters}

Delete Last Filter

Click to delete the last filter.

Filter n

The filter used for each counter.

Calculation Mode n

The calculation mode:

• Same as Filter 1

• Issue Count

• Time Spent

• Time Estimate

• Time Original Estimate

• Custom Number fields

The calculation operator:

• Sum

• Average

• Minimum

• Maximum

^{*Not applicable for Issue Count and Same as Filter 1 calculation mode.}

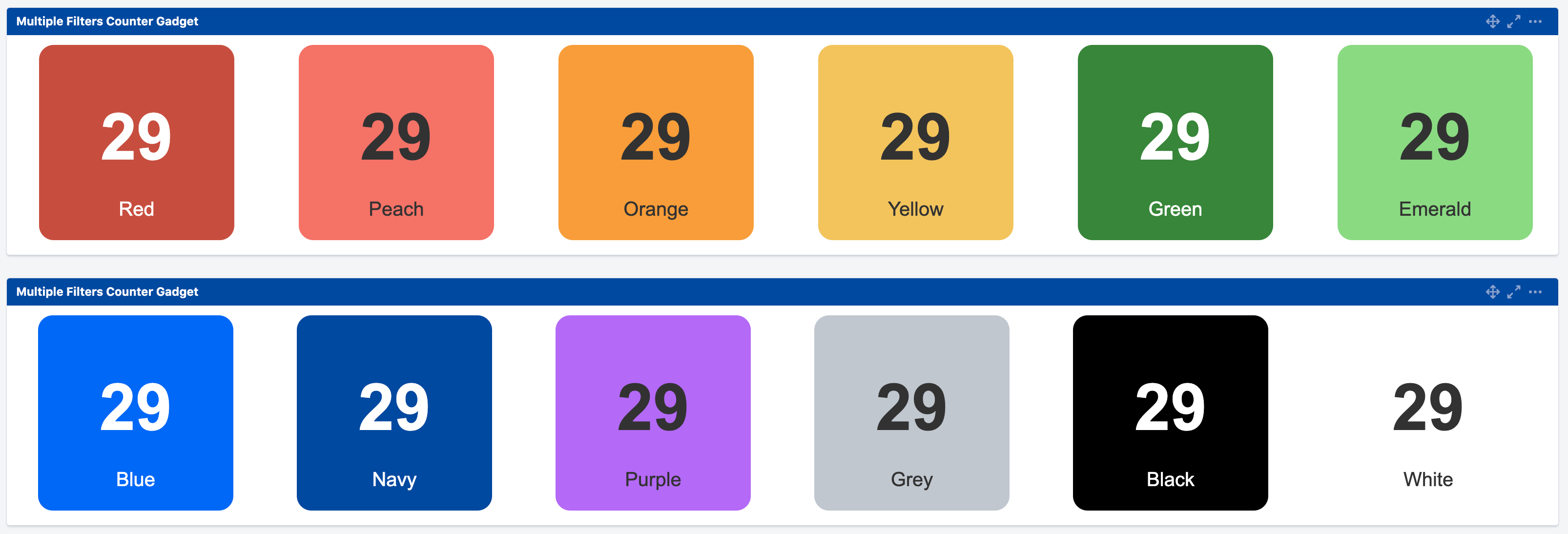

Board Color n

The color for the selected counter.

^!! Min Value n

The minimum value for range to apply for GTR or RTG

^!! Max Value Type n

The type of max value to use for range to apply for GTR or RTG

^!! Max Value n

(For Use Number as Max Value Option)

The maximum value for range to apply for GTR or RTG

^!! Max Value Filter n

(For Use Filter as Max Value Option)

The filter to use as max for each counter

^!! (Max Filter) Calculation Mode n

Issue Count / Same as Calculation Mode

Same as calculation mode but applied for max value filter

^!! Color Change Limit (%) n

The limit to use for color change

See How to set Color Change Limit for Counters for more information

Footer Text n

Helper text to display on Counter

Text Color n

Black

Color of text to be used on counter

Text Size n

Small

Size of text on counter

Hide Filter Link

Yes

Whether to show/hide filter link on counter

Gadget Height

Medium

The height of the gadget and gauge will scale based on the height of the gadget

Note:
^!! Setting only available for board color Green to Red and Red to Green
