How to compare and build a chart with 2 date fields

For example, there are 2 date custom fields Targeted Date and Actual Date.

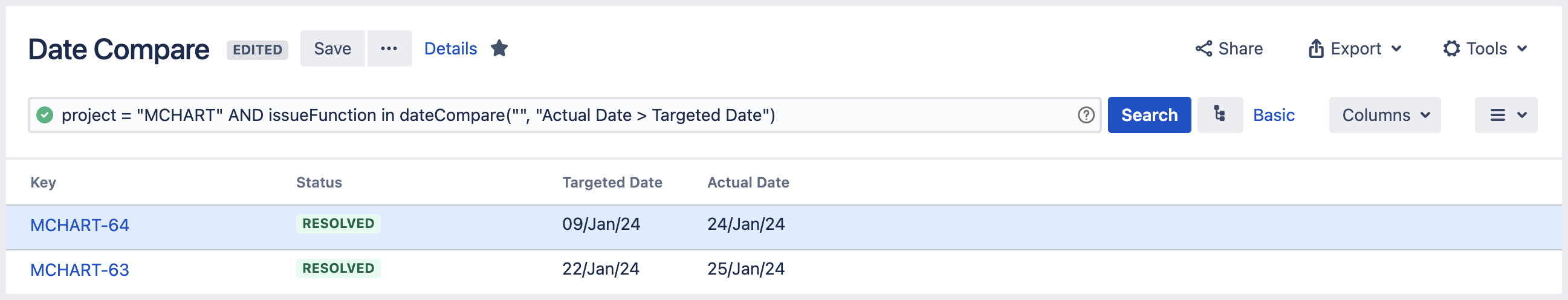

To compare these 2 dates, you can use ScriptRunner’s dateCompare:

CODE

issueFunction in dateCompare("", "Actual Date > Targeted Date")

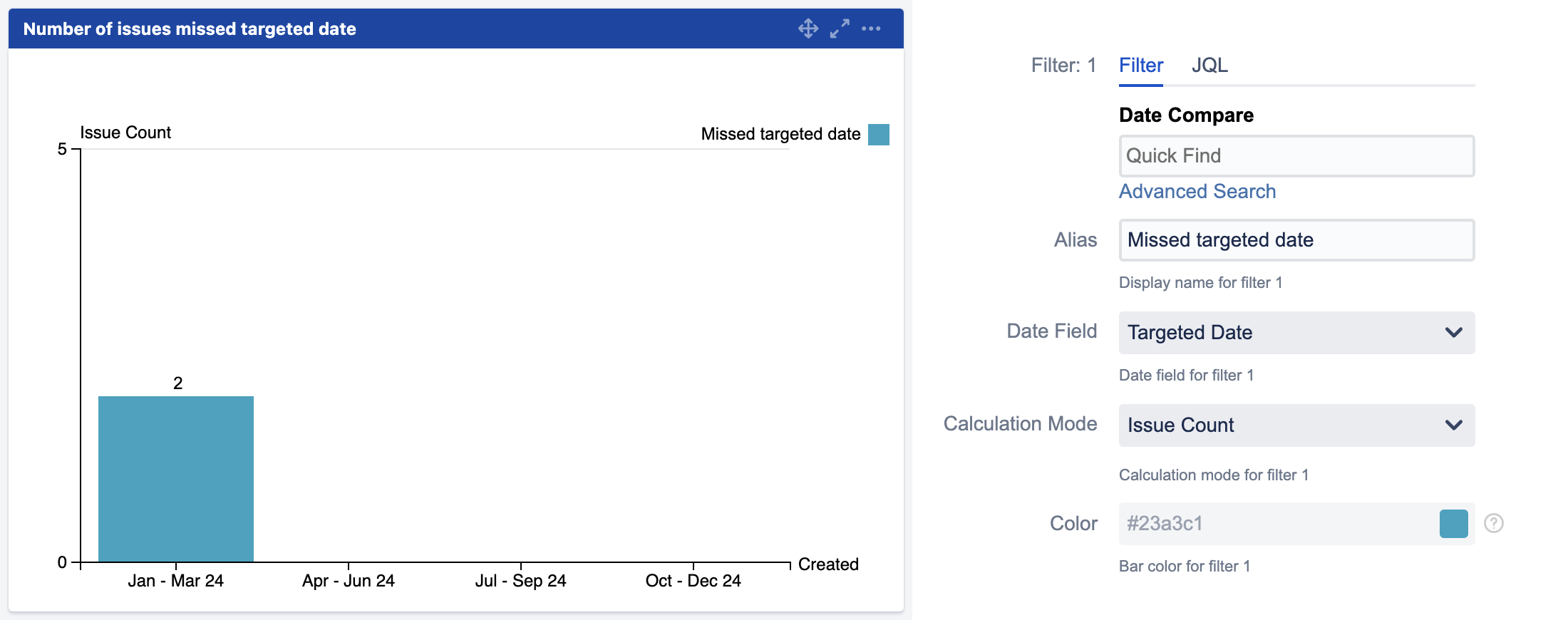

In the gadget, select Targeted Date as the Date Field to see the number of issues that missed the targeted date:

This can also be done using the resolution date and due date, to show number of issues that were resolved later than their due date:

CODE

issueFunction in dateCompare("", "resolutionDate > dueDate")
