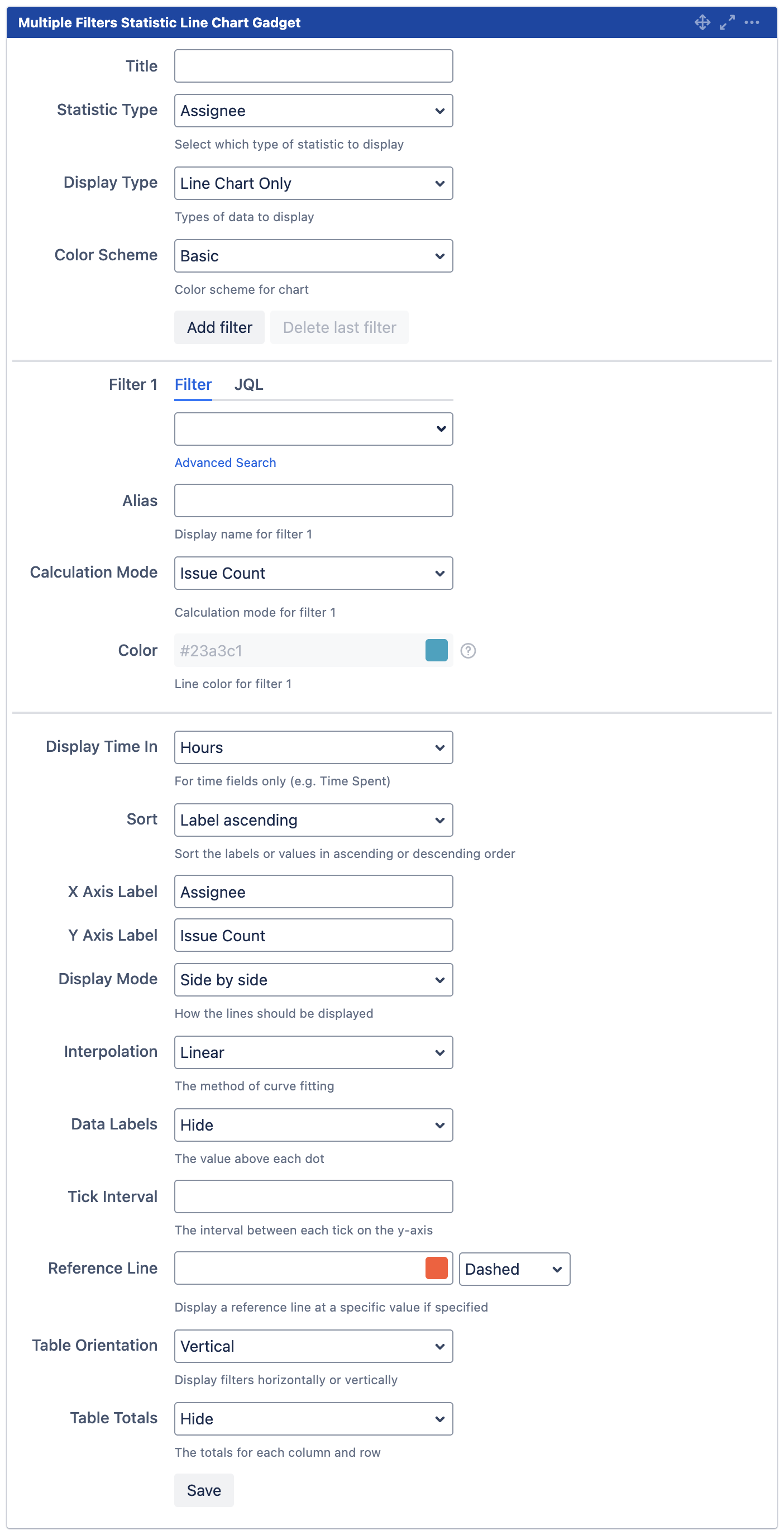

Configure Multiple Filters Statistic Line Chart Gadget

Title

The title of the gadget

Statistic Type

The type of statistic to display

Display Type

 Line Chart Only

The types of data to display:

• Line Chart Only

• Data Table Only

• Line Chart and Data Table

Color Scheme

Basic

The color scheme for bar chart:

• Basic

• Contrasting

• Shades

• Warm

• Custom

Add filter

Click to add filter

^{*Maximum of 12 filters}

Delete last filter

Click to delete last filter

Filter n

Select filter or enter JQL

Alias

The display name for filter n

Calculation Mode

Issue Count

The calculation mode for filter n:

• Same as Filter 1 (For Filter 2 onwards)

• Issue Count

• Time Spent

• Time Estimate

• Time Original Estimate

• Custom fields:

  • Number field

The operator:

• Sum

• Average

• Minimum

• Maximum

^{*Not applicable for Issue Count and Same as Filter 1}

Color

The line color for filter n

^{*Configurable only if Color Scheme is set to Custom}

Display Time In

Hours

The unit to display time in:

• Hours

• Days

• Weeks

^{*Applicable for Time Fields only (e.g. Time Spent)}

Sort

Label ascending

Sort the labels or values in ascending or descending order:

• Label ascending

• Label descending

• Value ascending

• Value descending

X Axis Label

Assignee

The x-axis label for the chart

Y Axis Label

Issue Count

The y-axis label for the chart

Display Mode

Side by side

How the lines for each filter should be displayed:

• Overlapped

• Side by side

Data Labels

Hide

Whether to show/hide the value for each dot:

• Show

• Hide

Tick Interval

The interval between each tick on the y-axis

Reference Line

The value to display the reference line

Click on 🟥 to change reference line color

The reference line style:

• Dashed

• Dotted

• Solid

Table Orientation

Vertical

Whether to display filters horizontally or vertically:

• Horizontal

• Vertical

Table Totals

Hide

The totals for each column and row:

• Show

• Show (Columns Only)

• Show (Rows Only)

• Hide
