Configuring Rolling Window Sprint Gadget

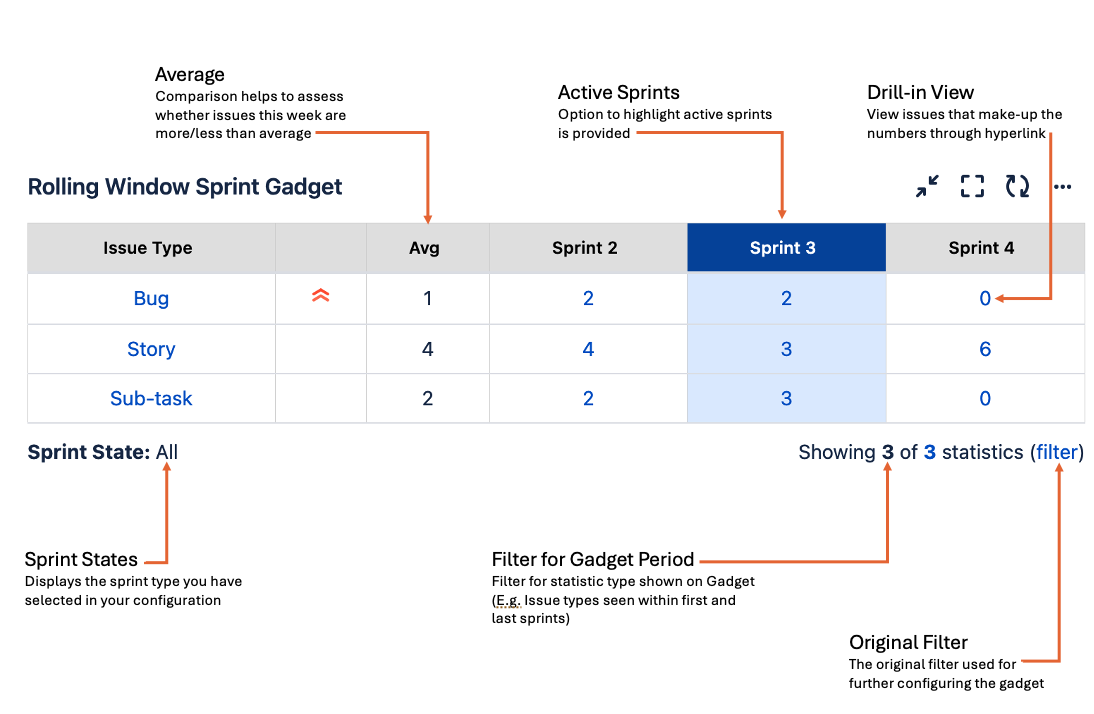

Rolling Window Sprint Gadget overview

The Rolling Window Sprint Gadget allows you to see the number of matching issues for the last / next X sprints depending on the period type selected.


Adding Rolling Window Sprint Gadget to a dashboard

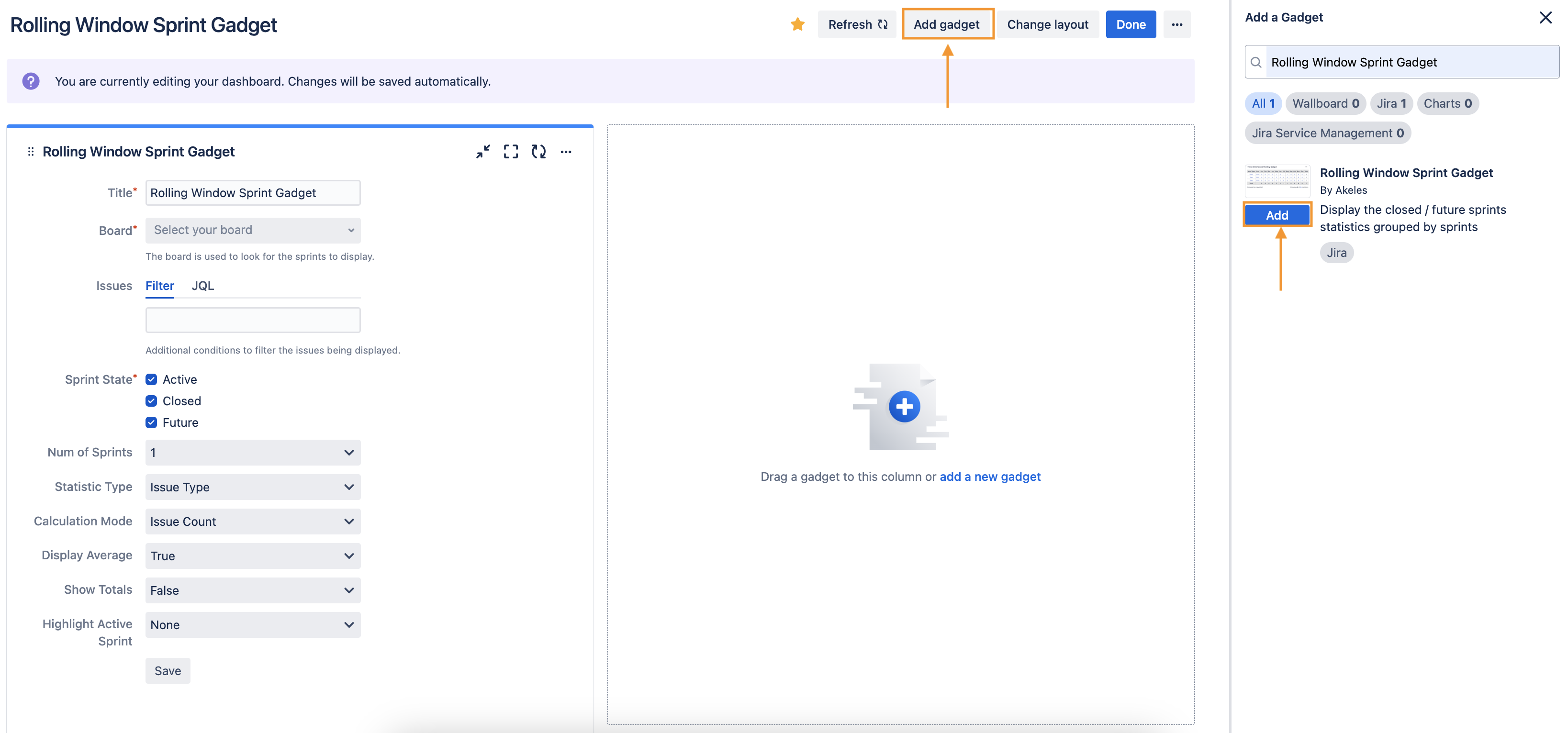

  1. Go to a dashboard and click on Add gadget.

  2. Search for Rolling Window Sprint Gadget and click on Add gadget next to it.


Rolling Window Sprint Gadget configuration


Setting

Description

Default

Title

Title for gadget

Rolling Window Sprint Gadget

Board

Displays the user's list of boards available

  • Used to get sprints

Issues

Additional conditions to filter the issues being displayed

Sprint State

Checkbox for user to select sprint state

  • Active
  • Closed
  • Future
  • Active
  • Closed
  • Future

Statistics Type

The issue field to be used for dividing the issues into different category rows

Issue Type

Calculation Mode

The calculation mode field to get value:

  • Issue Count

  • Locked forms

  • Open forms

  • Original estimate

  • Remaining Estimate

  • Story Points

  • Story points estimate

  • Submitted forms

  • Time Spent

  • Total forms

  • Work Ratio

  • ∑ Original Estimate

  • ∑ Remaining Estimate

  • ∑ Time Spent

The operator:

  • Sum

  • Average

  • Minimum

  • Maximum

*Not applicable for Issue Count

Issue Count

Display Average

Whether to calculate the average and display the trend indicator

  • True

  • False

True

Show Totals

Whether to show totals for the table

  • True

  • False

False

Highlight Active Sprints

Whether to highlight current sprint for ease of identifying

  • None

  • Red

  • Orange

  • Green

  • Teal

  • Blue

  • Purple

  • Gray

None

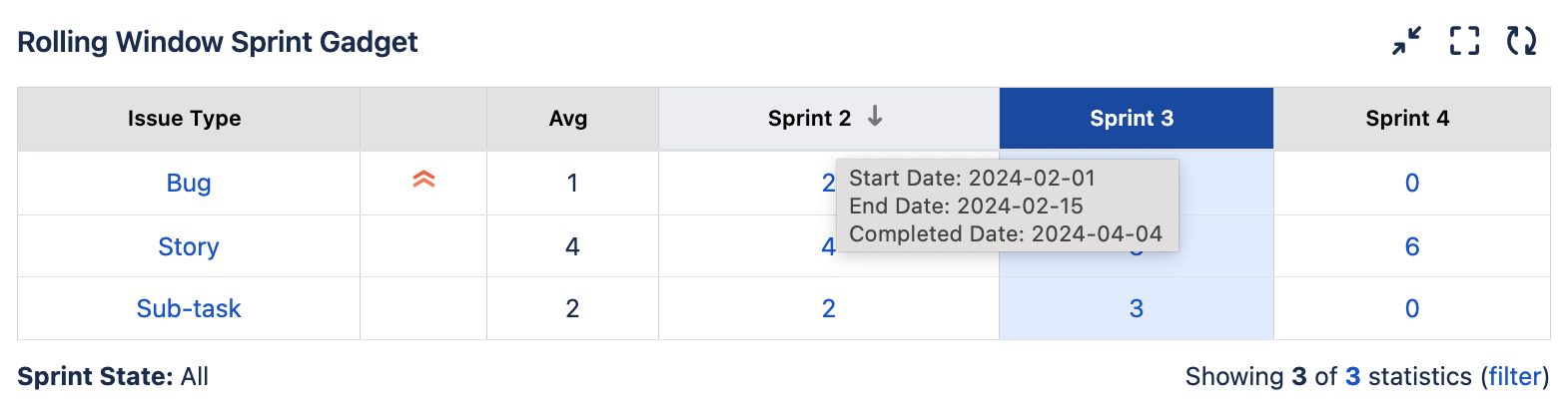

*BONUS TIP* Hover over sprint names for start, end, and completion dates! 🗓️
