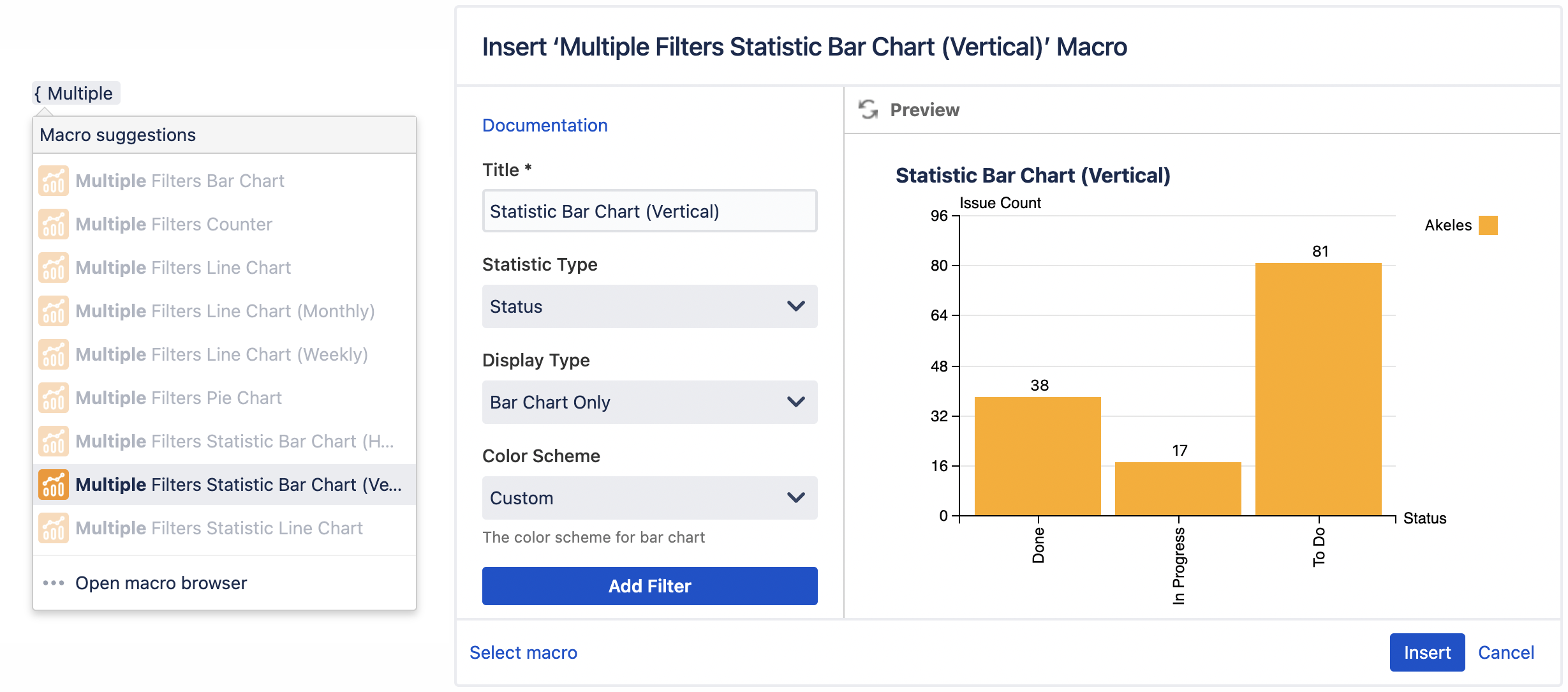

Configuring Multiple Filters Statistic Bar Chart (Vertical) Macro

Settings

Default

Description

Title

Statistic Bar Chart (Vertical)

The title of the macro

Statistic Type

Assignee

The statistic type to display

Display Type

Bar Chart Only

To display:

  • Bar Chart Only

  • Data Table Only

  • Bar Chart and Data Table

Color Scheme

Basic

The color scheme for bar chart:

  • Basic

  • Contrasting

  • Shades

  • Warm

  • Custom

Add Filter

Click to add filter

*Maximum of 12 filters can be added.

JQL n

Enter JQL to get the Jira issues

Alias n

The display name for the filter

Calculation Mode n

Issue Count

The calculation mode field to get value for y-axis:

  • Issue Count

  • Original Estimate

  • Remaining Estimate

  • Time Spent

  • Σ Original Estimate

  • Σ Remaining Estimate

  • Σ Time Spent

  • Number custom fields

The operator:

  • Sum

  • Average

  • Minimum

  • Maximum

*Not applicable for Issue Count

Color n

The color for the bar

*Configurable only if Color Scheme is set to Custom

Display Time In

Hours

The unit to display time in:

  • Hours

  • Days

  • Weeks

*Applicable for Time Fields only

X-Axis Label

Assignee

The x-axis label

Y-Axis Label

Issue Count

The y-axis label

Display Mode

Grouped

How the bars should be displayed:

  • Grouped

  • Stacked

Data Labels

Show

The value above each bar:

  • Show

  • Hide

Tick Interval

The interval between each tick on the y-axis

Reference Line

Enter a value to display the reference line

Click on the colored square to select color

The style of the reference line:

  • Dashed

  • Dotted

  • Solid

Table Orientation

Vertical

Display filters horizontally or vertically:

  • Horizontal

  • Vertical

Table Totals

Hide

The totals for each column and row:

  • Hide

  • Show (Columns Only)

  • Show (Rows Only)

  • Show
