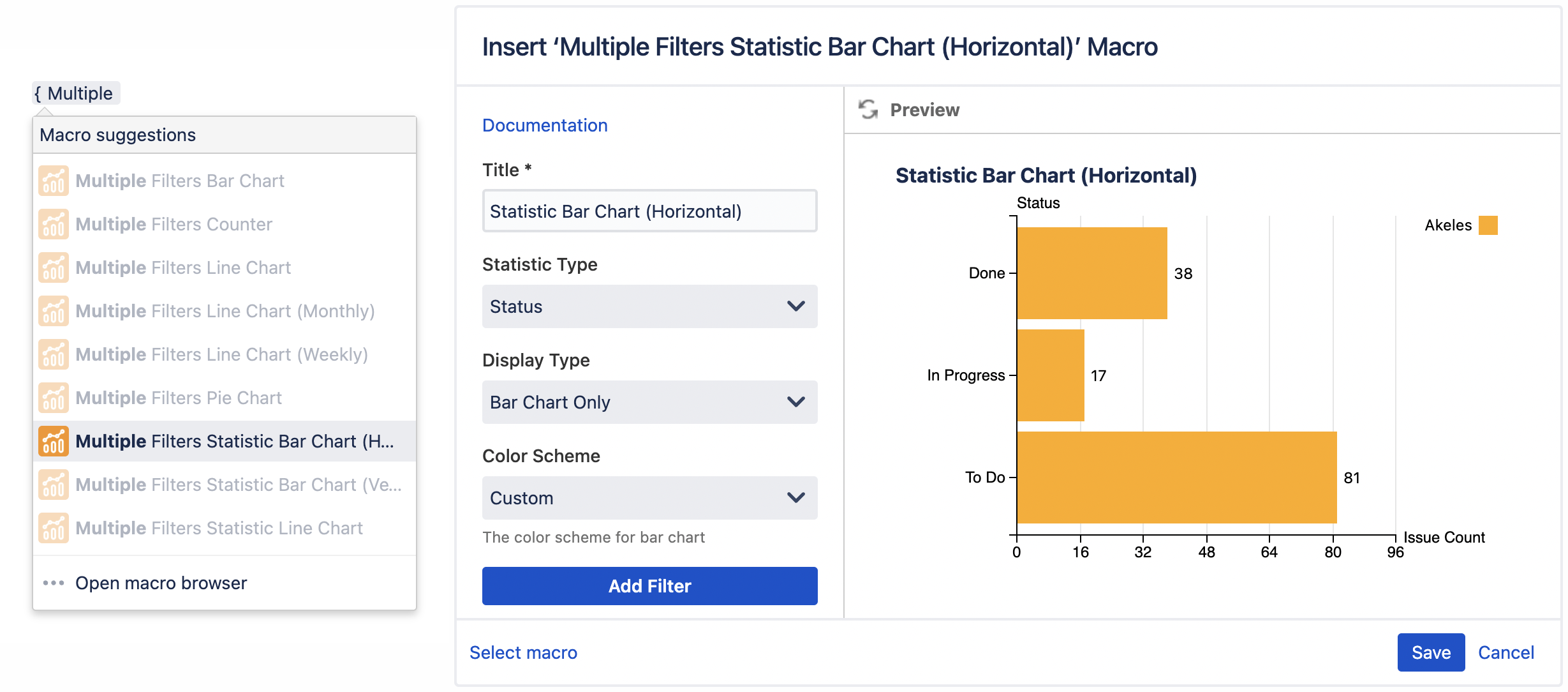

Configuring Multiple Filters Statistic Bar Chart (Horizontal) Macro
Settings | Default | Description | |
---|---|---|---|
Title | Statistic Bar Chart (Horizontal) | The title of the macro | |
Statistic Type | Assignee | The statistic type to display | |
Display Type | Bar Chart Only | To display:
| |
Color Scheme | Basic | The color scheme for bar chart:
| |
Add Filter | Click to add filter *Maximum of 12 filters can be added. | ||
JQL n | Enter JQL to get the Jira issues | ||
Alias n | The display name for the filter | ||
Calculation Mode n | Issue Count | The calculation mode field to get value for x-axis:
| The operator:
*Not applicable for Issue Count |
Color n | The color for the bar *Configurable only if Color Scheme is set to Custom | ||
Display Time In | Hours | The unit to display time in:
*Applicable for Time Fields only | |
X-Axis Label | Issue Count | The x-axis label | |
Y-Axis Label | Assignee | The y-axis label | |
Display Mode | Grouped | How the bars should be displayed:
| |
Data Labels | Show | The value above each bar:
| |
Tick Interval | The interval between each tick on the x-axis | ||
Reference Line | Enter a value to display the reference line Click on the colored square to select color | The style of the reference line:
| |
Table Orientation | Vertical | Display filters horizontally or vertically:
| |
Table Totals | Hide | The totals for each column and row:
|
