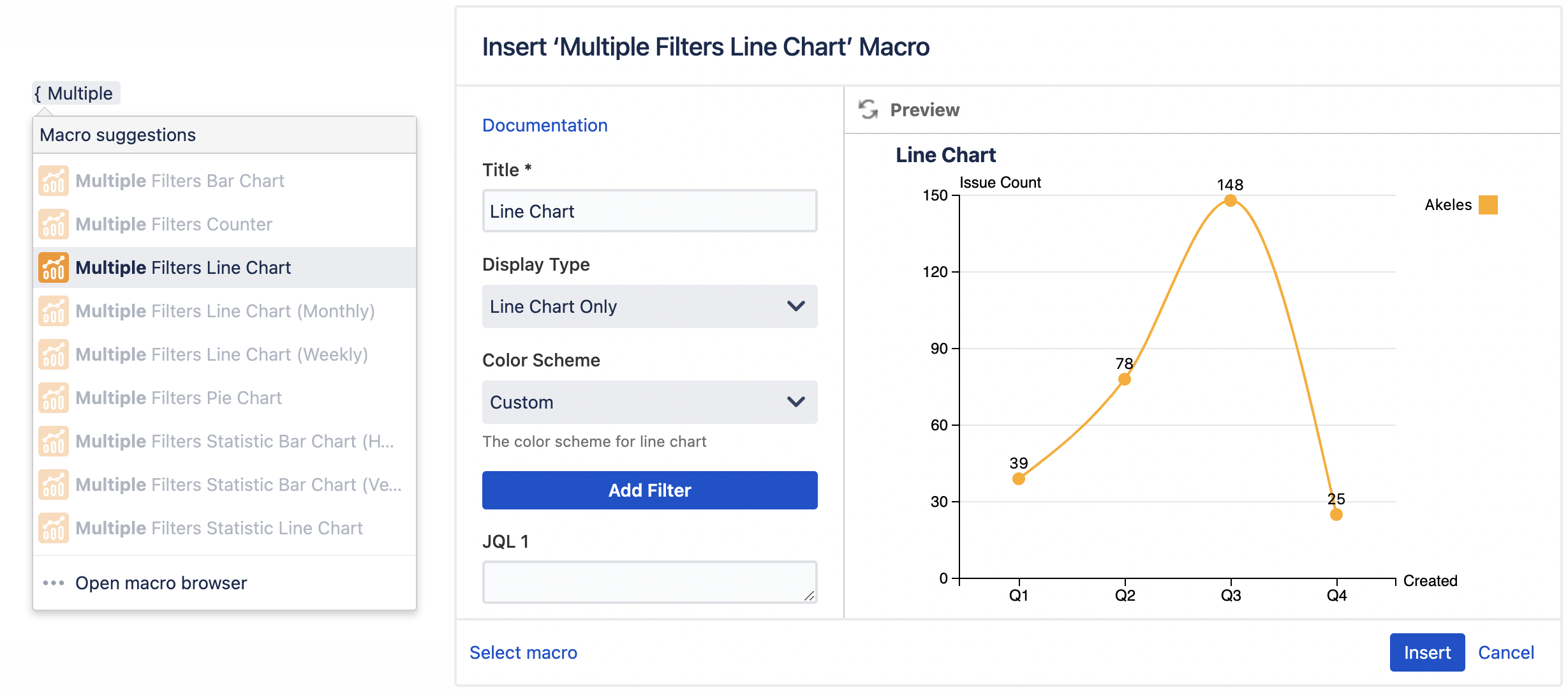

Configuring Multiple Filters Line Chart Macro

Settings

Default

Description

Title

Line Chart

The title of the macro

Display Type

Line Chart Only

To display:

  • Line Chart Only

  • Data Table Only

  • Line Chart and Data Table

Color Scheme

Basic

The color scheme for line chart:

  • Basic

  • Contrasting

  • Shades

  • Warm

  • Custom

Add Filter

Click to add filter

*Maximum of 12 filters can be added.

JQL n

Enter JQL to get the Jira issues

Alias n

The display name for the filter

Date n

Created

The date field to get date value for x-axis:

  • Created

  • Updated

  • Resolved

  • Due Date

  • Date picker custom fields

  • Date time picker custom fields

Calculation Mode n

Issue Count

The calculation mode field to get value for y-axis:

  • Issue Count

  • Original Estimate

  • Remaining Estimate

  • Time Spent

  • Σ Original Estimate

  • Σ Remaining Estimate

  • Σ Time Spent

  • Number custom fields

The operator:

  • Sum

  • Average

  • Minimum

  • Maximum

*Not applicable for Issue Count

Color n

The color for the line

*Configurable only if Color Scheme is set to Custom

Display Time In

Hours

The unit to display time in:

  • Hours

  • Days

  • Weeks

*Applicable for Time Fields only

Cumulative Mode

No

Display cumulative data over time:

  • Yes

  • No

Period Format

Months with Year

The period format for the x-axis labels:

  • Months with Year

  • Months without Year

  • Numeric Months with Year

  • Numeric Months without Year

  • Quarter with Year

  • Quarter without Year

  • Half with Year

  • Half without Year

Months In Group

1

The number of months to group together:

  • 1

  • 2

  • 3

  • 4

  • 6

  • 12

Display All Months

No

Display all month groups:

  • Yes

  • No

Display Full Year

No

Display all 4 digits of the year (e.g. 2008):

  • Yes

  • No

Sort

Date ascending

Sort the dates in ascending or descending order:

  • Date ascending

  • Date descending

X-Axis Label

Created

The x-axis label

Y-Axis Label

Issue Count

The y-axis label

Display Mode

Side By Side

How the lines should be displayed:

  • Overlapped

  • Side By Side

Interpolation

Linear

The method of curve fitting:

  • Linear

  • Monotone

Data Labels

Show

The value above each dot:

  • Show

  • Hide

Tick Interval

The interval between each tick on the y-axis

Reference Line

Enter a value to display the reference line

Click on the colored square to select color

The style of the reference line:

  • Dashed

  • Dotted

  • Solid

Table Orientation

Vertical

Display filters horizontally or vertically:

  • Horizontal

  • Vertical

Table Totals

Hide

The totals for each column and row:

  • Hide

  • Show (Columns Only)

  • Show (Rows Only)

  • Show
