Configuring Multiple Filters Line Chart (Floating Weeks) Macro

This macro is introduced in version 1.6.0.

Multiple Filters Chart Gadgets for Jira version >= 5.20.0 is required.

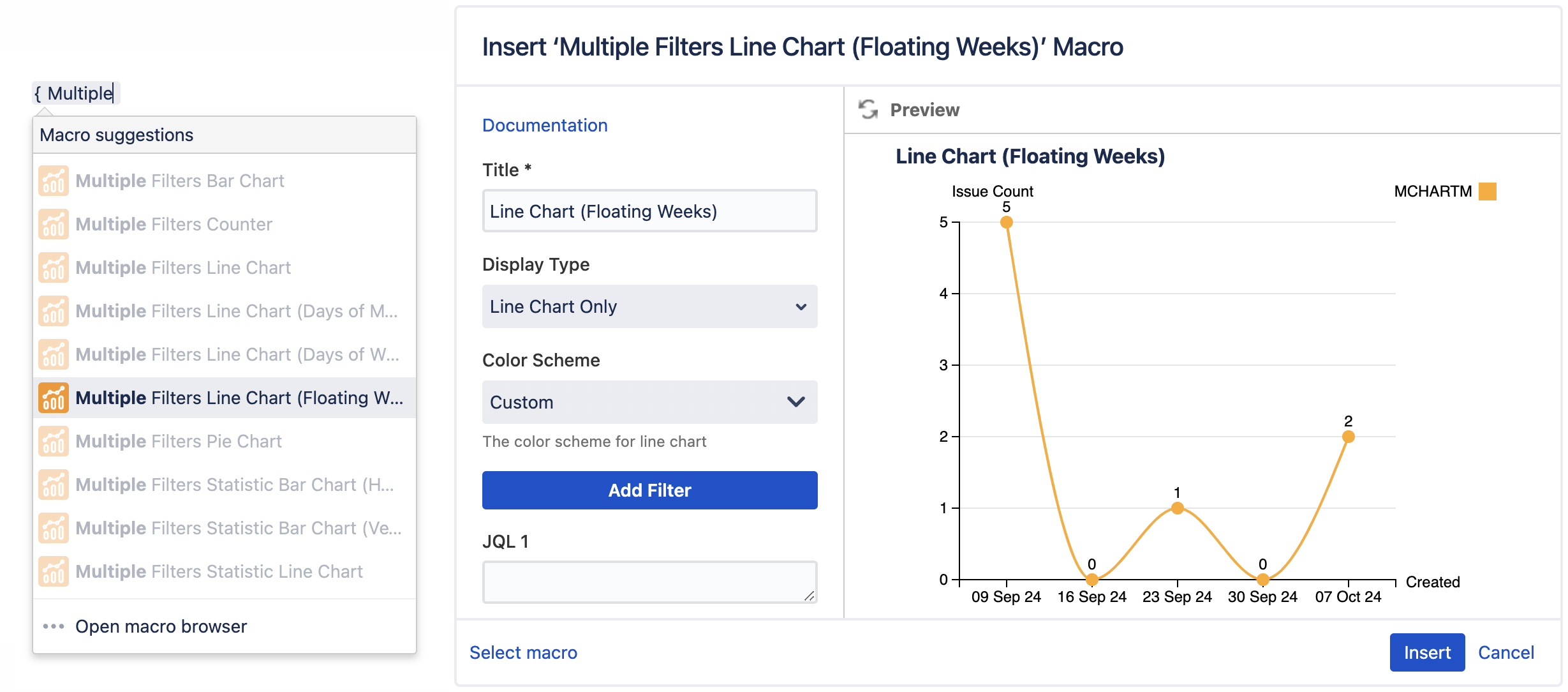

mchartm line chart floating weeks config.png

Settings

Default

Description

Title

Line Chart (Floating Weeks)

The title of the macro

Display Type

Line Chart Only

The types of data to display:

  • Line Chart Only

  • Data Table Only

  • Line Chart and Data Table

Color Scheme

Basic

The color scheme for line chart:

  • Basic

  • Contrasting

  • Shades

  • Warm

  • Custom

Add Filter

Click to add filter

*Maximum of 12 filters

JQL n

Enter JQL to get the Jira issues

Alias n

The display name for JQL n

Date n

Created

The date field for JQL n:

  • Created

  • Updated

  • Resolved

  • Due Date

  • Custom fields:

    • Date picker

    • Date time picker

Calculation Mode n

Issue Count

The calculation mode for JQL n:

  • Issue Count

  • Original Estimate

  • Remaining Estimate

  • Time Spent

  • Σ Original Estimate

  • Σ Remaining Estimate

  • Σ Time Spent

  • Custom fields:

    • Number

The operator:

  • Sum

  • Average

  • Minimum

  • Maximum

*Not applicable for Issue Count

Color n

The line color for JQL n

*Configurable only if Color Scheme is set to Custom

Display Time In

Hours

The unit to display time in:

  • Hours

  • Days

  • Weeks

*Applicable for Time Fields only (e.g. Time Spent)

Cumulative Mode

No

Whether to display cumulative data over time:

  • Yes

  • No

Period Type

Weeks Before (Including current)

The period to plot:

  • Weeks Before (Including current)

  • Weeks After (Including current)

  • Weeks Before and After

No. of Weeks

0

The number of weeks to display before and/or after (maximum of 8 weeks)

First Day of Week

Sunday

The first day of the week:

  • Sunday

  • Monday

  • Tuesday

  • Wednesday

  • Thursday

  • Friday

  • Saturday

Display Full Year

No

Whether to display all 4 digits of the year (e.g. 2008):

  • Yes

  • No

Sort

Date ascending

Sort the dates in ascending or descending order:

  • Date ascending

  • Date descending

X-Axis Label

Created

The x-axis label for the chart

Y-Axis Label

Issue Count

The y-axis label for the chart

Display Mode

Side By Side

How the lines should be displayed:

  • Overlapped

  • Side By Side

Interpolation

Linear

The method of curve fitting:

  • Linear

  • Monotone

Data Labels

Show

Whether to show/hide the value above each dot:

  • Show

  • Hide

Tick Interval

The interval between each tick on the y-axis

Reference Line

Enter a value to display the reference line

Click on the colored square to select color

The style of the reference line:

  • Dashed

  • Dotted

  • Solid

Table Orientation

Vertical

Whether to display filters horizontally or vertically:

  • Horizontal

  • Vertical

Table Totals

Hide

The totals for each column and row:

  • Hide

  • Show (Columns Only)

  • Show (Rows Only)

  • Show
