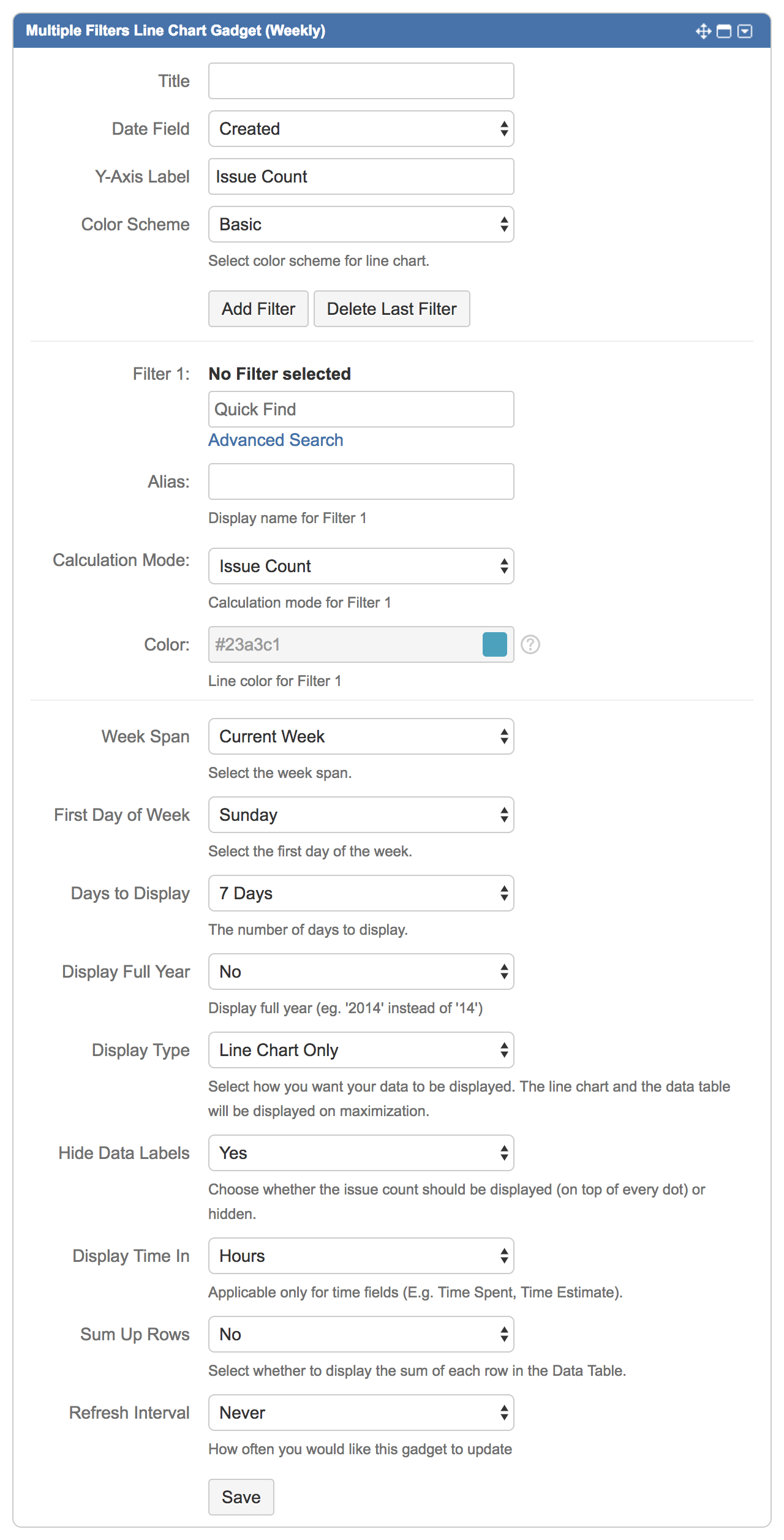

How to Configure Multiple Filters Line Chart Gadget (Weekly) 2.x / 3.x

SettingsDefault ValueExplanation
Title
Enter title for the line chart window.
Date FieldCreatedSelect the Issue Field (of Date Type) to plot as the X-axis of the line chart.
Y-Axis LabelIssue CountDefine the Y-axis label to be displayed.
Color SchemeBasic

Select a color scheme:

  • Basic
  • Contrasting
  • Shades
  • Warm
  • Custom

Add Filter


Click to add another filter.

Delete Last Filter


Click to delete the last filter.
Filter n (max. 12)
Choose the filter(s) to be displayed in the line chart.
Alias for Filter n

Define an alias for the filter(s) to be displayed in the legend.

If undefined, filter name will be displayed.

Calculation Mode for Filter nIssue Count

Select the calculation mode:

  • Same as Filter 1 (Available for Filter 2 onwards)
  • Issue Count
  • Time Spent
  • Time Estimate
  • Time Original Estimate
  • Custom Fields

Select the calculation operator:

  • Sum
  • Average
  • Minimum
  • Maximum

*Not applicable for Issue Count and Same as Filter 1 option.

Color for Filter n

Pick a color for the line.

*Configurable only if Color Scheme is set to Custom.

Week SpanCurrent Week

Select the week span to display:

  • Current Week
  • Last Week
First Day of WeekSunday

Choose the first day of the week:

  • Sunday
  • Monday
  • Tuesday
  • Wednesday
  • Thursday
  • Friday
  • Saturday
Days to Display7 Days

Choose the number of days to display:

  • 5 Days (5 out of 7 days of the week)
  • 6 Days (6 out of 7 days of the week)
  • 7 Days (Full week)
Display Full YearNo

Select the display format of the Year:

  • Yes (E.g. Year 2016 will be displayed as "2016")
  • No (E.g. Year 2016 will be displayed as "16")
Display TypeLine Chart Only

Select the display type of the gadget:

  • Line Chart Only
  • Data Table Only
  • Line Chart and Data Table
Hide Data LabelsYes

Select whether to display or hide the values:

  • Yes
  • No
Display Time InHours

Select how the time should be displayed:

  • Hours
  • Days
  • Weeks

*Applicable for Time Fields only.

Sum Up RowsNo

Select whether to display the sum of each row in the Data Table:

  • Yes
  • No

*Applicable only if Data Table is displayed.

Refresh IntervalNever

Select how often (how many minutes interval) the line chart should be refreshed:

  • Never
  • Every 15 minutes
  • Every 30 Minutes
  • Every 1 hour
  • Every 2 hours
