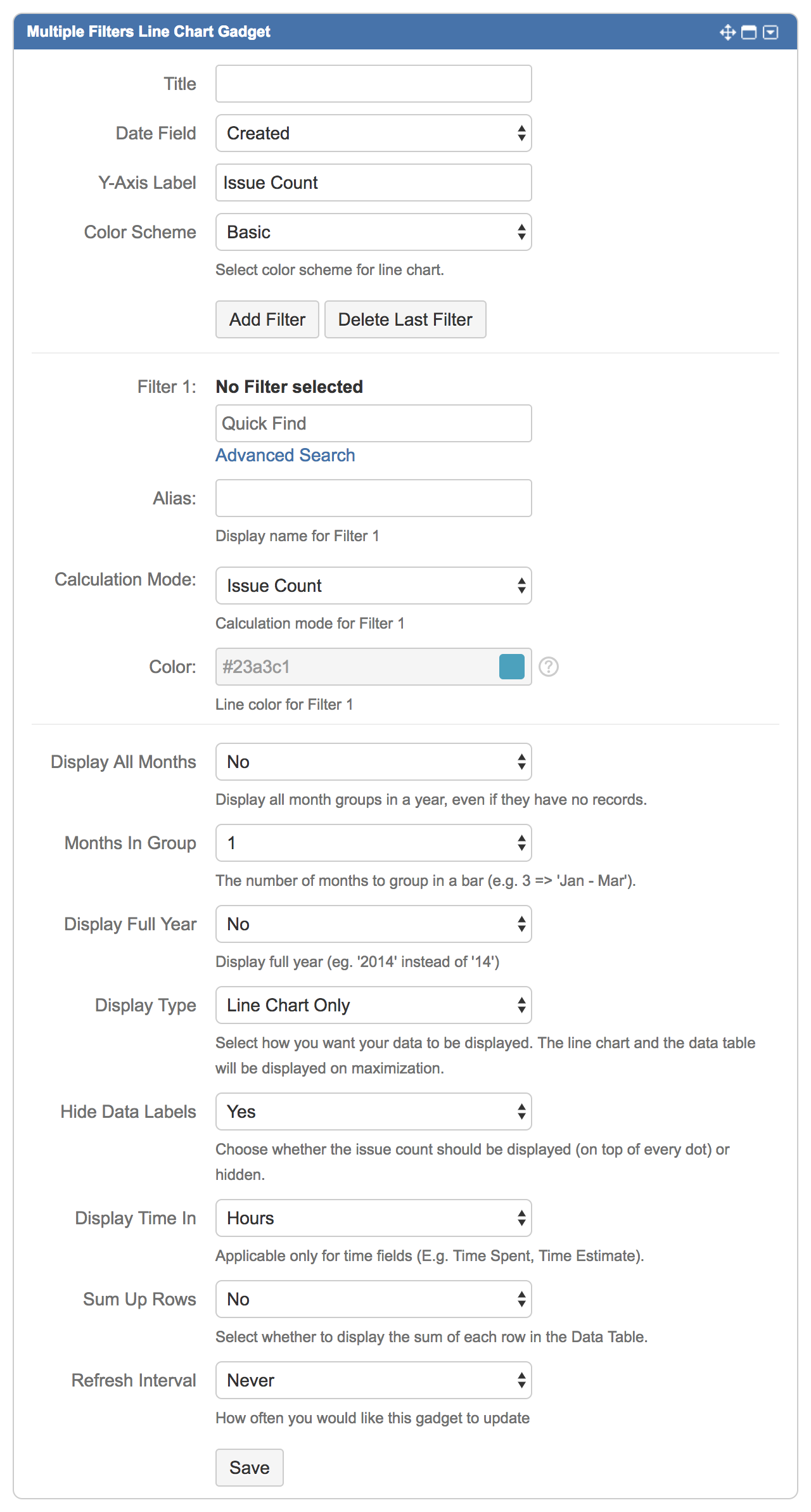

How to Configure Multiple Filters Line Chart Gadget 2.x / 3.x

SettingsDefaultDescription
Title
Enter title for the gadget.
Date FieldCreated

Select the date field to plot as the x-axis of the bar chart:

  • Created
  • Updated
  • Resolved
  • Due Date
  • Custom Date Picker or Date Time Picker fields
Y-Axis LabelIssue CountDefine the y-axis label to be displayed.
Color SchemeBasic

Custom option is available from version 2.1.0 onwards.

Select a color scheme for the line chart:

  • Basic
  • Contrasting
  • Shades
  • Warm
  • Custom

Add Filter


Click to add another filter.

*Maximum of 12 filters can be added.

Delete Last Filter


Click to delete the last filter.
Filter n
Choose the filter(s) to plot the line chart.
Alias for Filter n

Define an alias for the filter(s) to be displayed in the legend.

If undefined, filter name will be displayed.

Calculation Mode for Filter nIssue Count

Select the calculation mode:

  • Same as Filter 1 (Available from Filter 2 onwards)
  • Issue Count
  • Time Spent
  • Time Estimate
  • Time Original Estimate
  • Custom Number fields

Select the calculation operator:

  • Sum
  • Average
  • Minimum
  • Maximum

*Not applicable for Issue Count and Same as Filter 1 option.

Color for Filter n

Available from version 2.1.0 onwards.

Pick a color for the line.

*Configurable only if Color Scheme is set to Custom.

Display All MonthsNo

Select whether to display all months in the chart regardless of the value:

  • Yes (Display all months, even if there is no value)
  • No (Display months with values only)
Months In Group1

Select the number of months to be grouped together:

  • 1
  • 2
  • 3
  • 4
  • 6
  • 12

E.g. 4 months in group: Jan Apr, May Aug, Sep Dec.

Display Full YearNo

Select whether to display the full year:

  • Yes ('2008' for year 2008)
  • No ('08' for year 2008)
Display TypeLine Chart Only

Select the display type of the gadget:

  • Line Chart Only
  • Data Table Only
  • Line Chart and Data Table
Hide Data LabelsYes

Select whether to hide the values:

  • Yes
  • No
Display Time InHours

Select how the time should be displayed:

  • Hours
  • Days
  • Weeks

*Applicable for Time Fields only.

Sum Up RowsNo

Available from version 2.2.0 onwards.

Select whether to sum up rows in the Data Table:

  • Yes
  • No

*Applicable only if Data Table is displayed.

Chart ModeNormal

Available from version 2.3.0 onwards.

Select how the chart data should be calculated over time:

  • Normal
  • Cumulative
