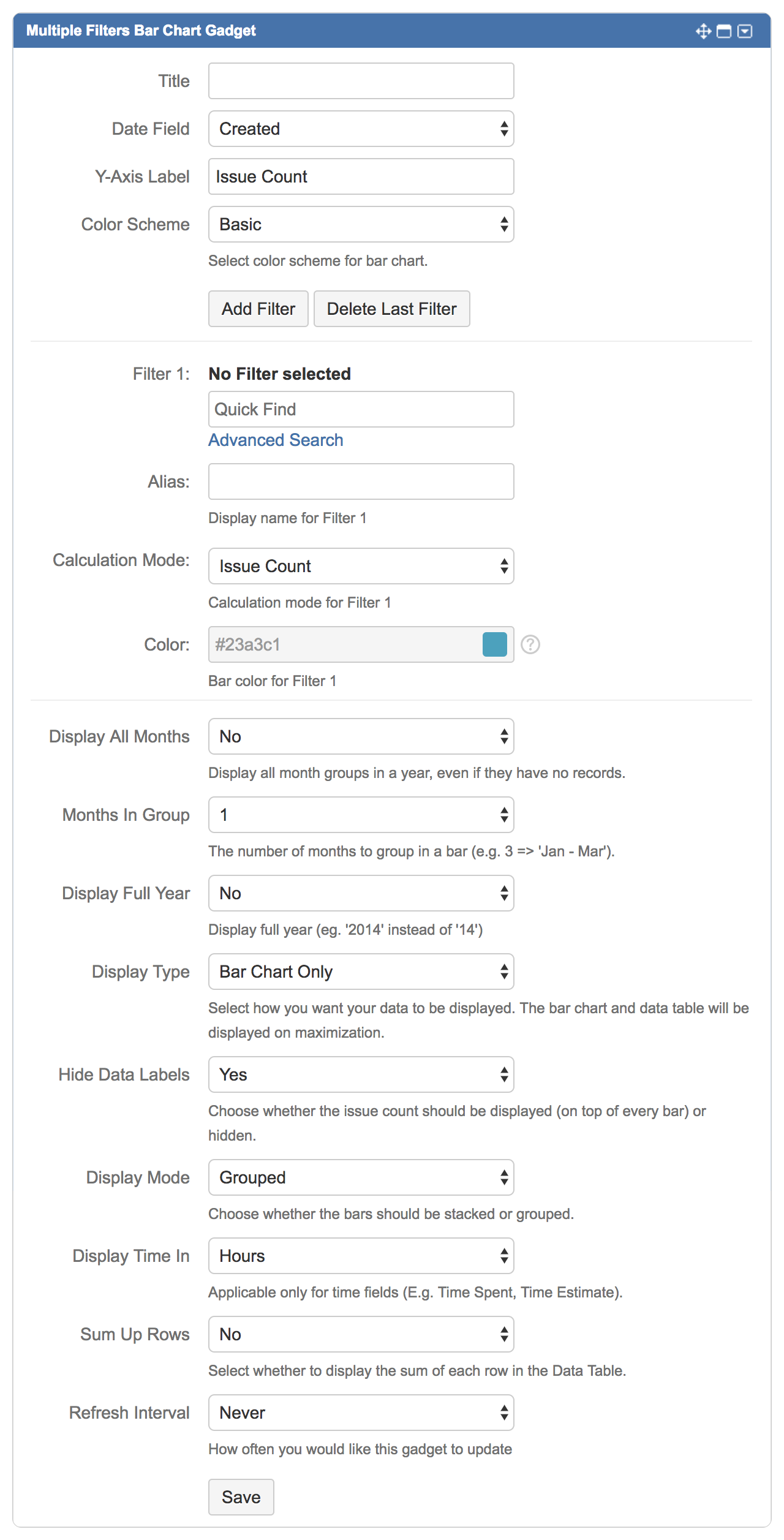

How to Configure Multiple Filters Bar Chart Gadget 2.x / 3.x

Title

Enter title for the gadget.

Select the date field to plot as the x-axis of the bar chart:

• Created
• Updated
• Resolved
• Due Date
• Custom Date Picker or Date Time Picker fields

Click to add another filter.

^{*Maximum of 12 filters can be added.}

Delete Last Filter

Define an alias for the filter(s) to be displayed in the legend.

If undefined, filter name will be displayed.

Select the calculation mode:

• Same as Filter 1 (Available from Filter 2 onwards)
• Issue Count
• Time Spent
• Time Estimate
• Time Original Estimate
• Custom Number fields

Select the calculation operator:

• Sum
• Average
• Minimum
• Maximum

^{*Not applicable for Issue Count and Same as Filter 1 option.}

Available from version 2.1.0 onwards.

Pick a color for the bar.

^{*Configurable only if Color Scheme is set to Custom.}

Select whether to display all months in the chart regardless of the value:

• Yes (Display all months, even if there is no value)
• No (Display months with values only)

Select the number of months to be grouped together:

• 1
• 2
• 3
• 4
• 6
• 12
• All Time

E.g. 4 months in group: Jan ― Apr, May ― Aug, Sep ― Dec.

Select whether to display the full year:

• Yes ('2008' for year 2008)
• No ('08' for year 2008)

Select the display type of the gadget:

• Bar Chart Only
• Data Table Only
• Bar Chart and Data Table

Select whether to hide the bar values:

• Yes
• No

Select how the bars should be displayed:

• Grouped (Side by side)
• Stacked (Above one another)

Select how the time should be displayed:

• Hours
• Days
• Weeks

^{*Applicable for Time Fields only.}
