Section 1 - Adding the custom fields involved in the lookup
Objectives

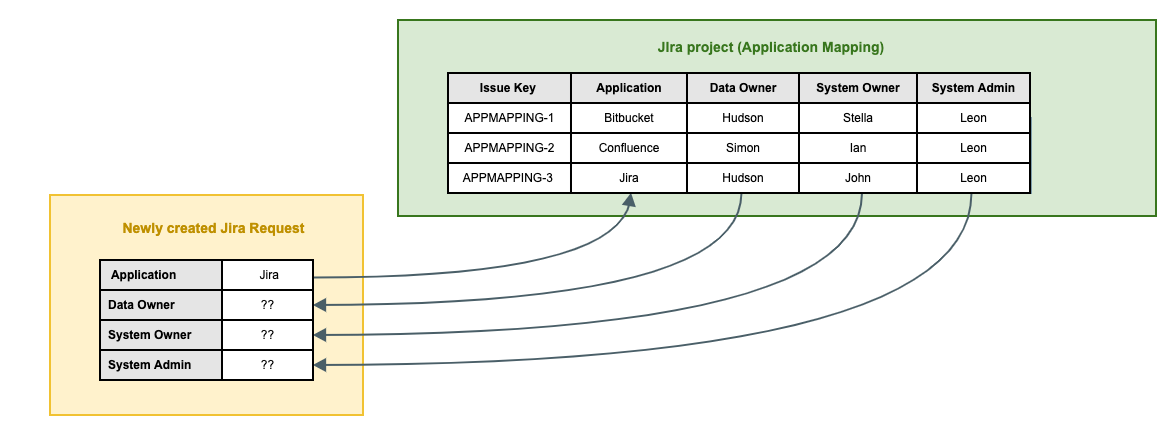

This section is to ensure the custom fields used in both projects are defined in Jira, so that it can be used in the automation.
In this example, we used the same custom fields in the both projects to keep it simple. It is actually possible to have different custom fields as long they are the same type. E.g. using Data Owner to update the Assignee field.
We will need to add the following custom fields if they are not defined.
Custom Field Name | Field Type |
|---|---|
Application | Select List (single choice) |
Data Owner | User Picker (single user) |
System Owner | User Picker (single user) |
System Admin | User Picker (single user) |
You can also add additional fields that are used in the Service Desk request project
Custom Field Name | Field Type | Purpose |
|---|---|---|
Application Role | Select List (single choice) | It provides whether the requester requires what level of access. The options are:
|
Employee User | User Picker (single user) | This is to facilitate team members from requesting access on behalf of a new employee |
Access Start Date | Date Picker | Denotes the effective start date of this access |
Planned Access End Date | Date Picker | The date that the account is to be revoked. Leave it blank for perpetual access. |
If there is an existing custom field with the same name, you can either
add a new context if the field type is matching
create the custom field with another name if the field type does not match
Steps
To access the custom field configuration page

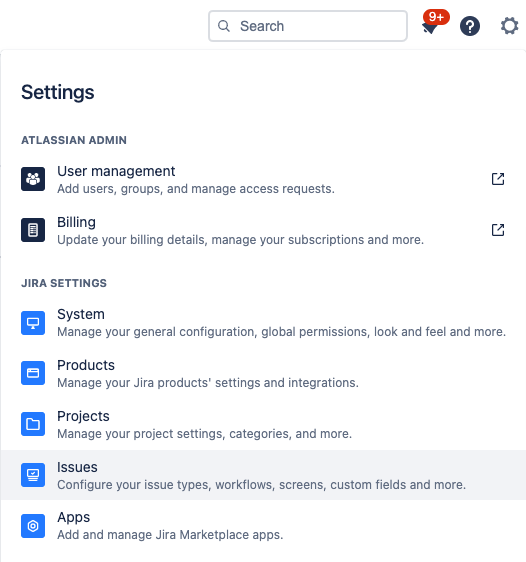

Go to Settings > Issues
Select Custom fields on the left side menu
Adding the Application custom field

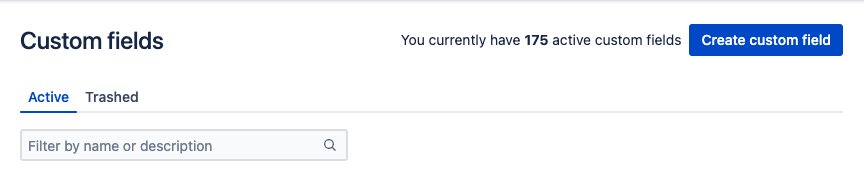

Click on Create custom field on the top right corner of the screen

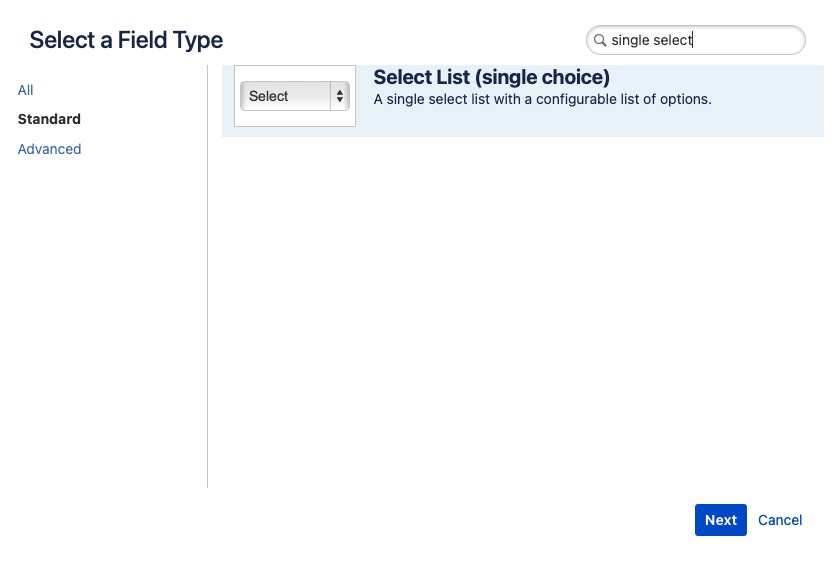

Search for the Select List (single choice) Field Type
Click on the Next button
.png?inst-v=a51eb911-bcd8-473b-a1c4-ee1e055605f7)

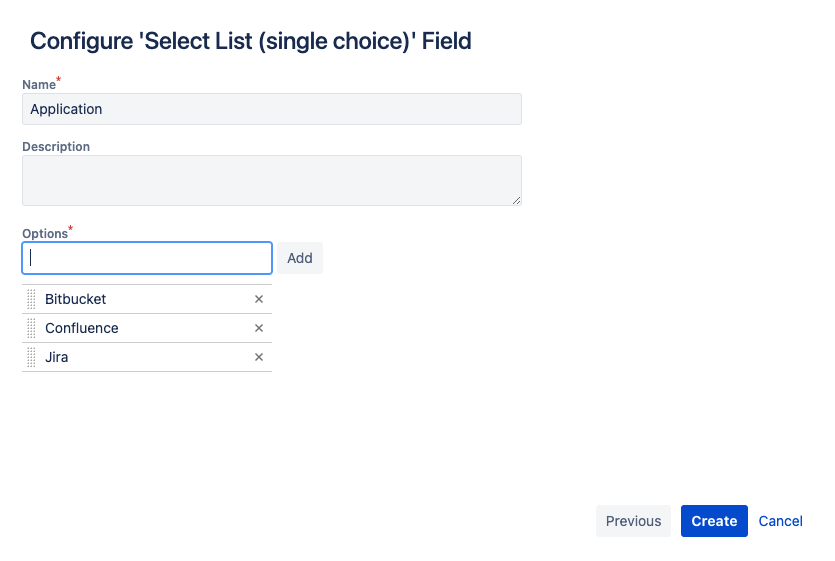

Enter the Name (Application) and add the options (Bitbucket, Confluence, Jira)
Click on the Create button
Click on Cancel button since we can add them to the screens later
Adding the Data Owner custom field
Click on Create custom field on the top right corner of the screen

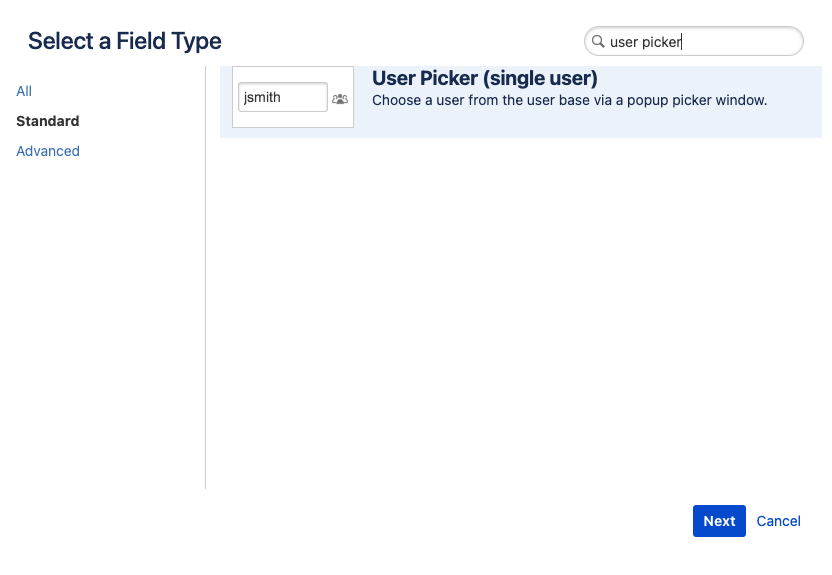

Search for the User Picker (single user) Field Type
Click on the Next button

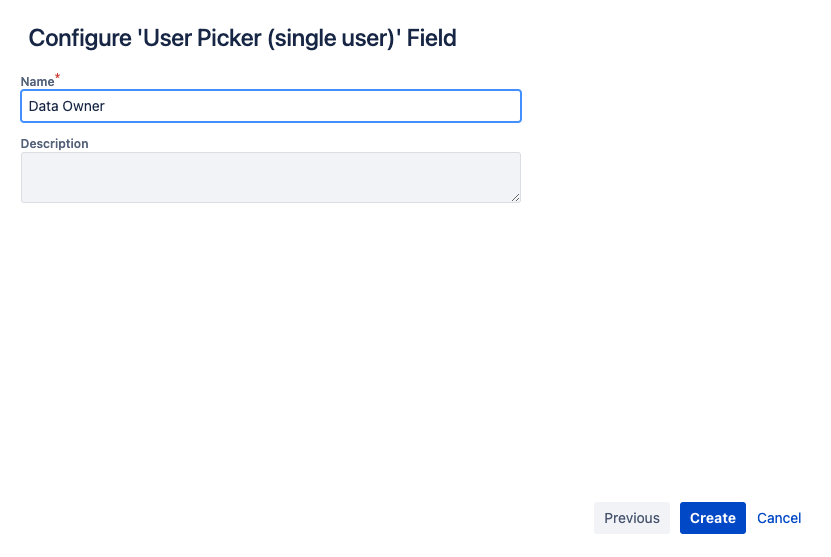

Enter the Name (Data Owner)
Click on the Create button
Click on Cancel button since we can add them to the screens later
Repeat the same for the System Owner and System Admin
Adding the Data Owner custom field
Click on Create custom field on the top right corner of the screen
Search for the User Picker (single user) Field Type
Click on the Next button

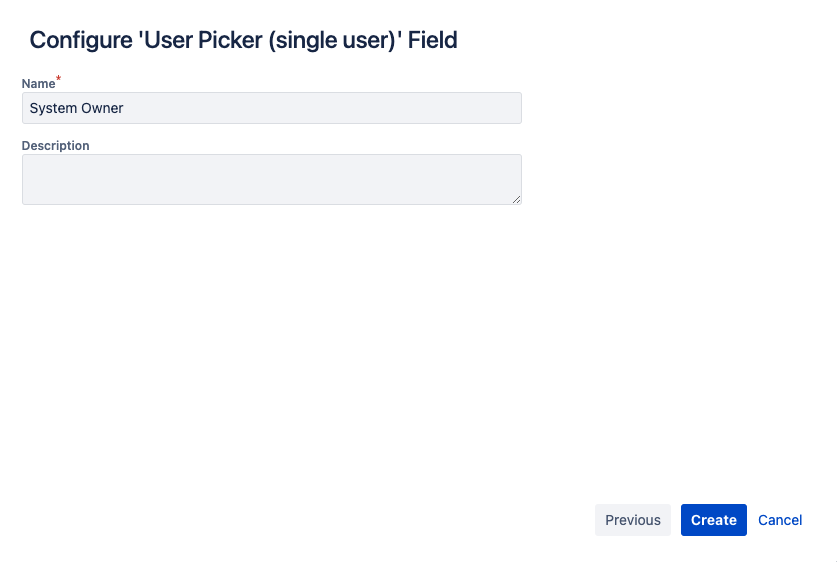

Enter the Name (System Owner)
Click on the Create button
Click on Cancel button since we can add them to the screens later
Adding the System Admin custom field
Click on Create custom field on the top right corner of the screen
Search for the User Picker (single user) Field Type
Click on the Next button
Enter the Name (Data Owner)
Click on the Create button
Click on Cancel button since we can add them to the screens later
Next
For good Jira admin practices, you can configure custom field context to limit the scope of the projects. This is excluded to keep this tutorial simple.
Now you are ready to proceed to the next section: Section 2 - Setup for the APPMAPPING project
