Mapping a Cascading Select List Option to Your Lookup Table

Scenario

I have a long list of options, which has multiple child options for the custom field used.

Based on User's selection, I want the lookup post function to return me a username based on the Platform selected.

How can I structure the lookup table for this custom field?



Pre-Requisite

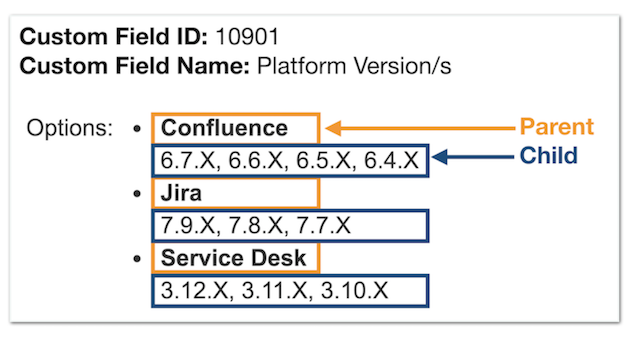

  1. You have a cascading custom field. And this is how your cascading values are stored.

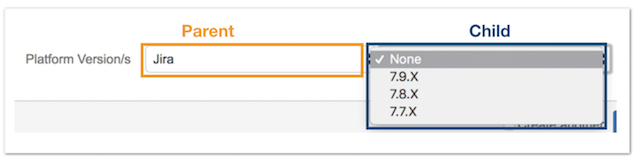

  2. Looking at your Jira issue, this is how the field populates (Parent: Jira, Child 7.9.X/7.8.X/7.7X)



Steps

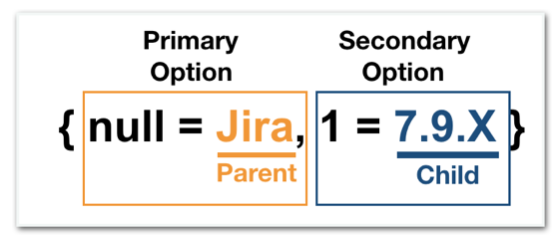

Design of your Lookup String Value

e.g. {null=Parent, 1=Child}

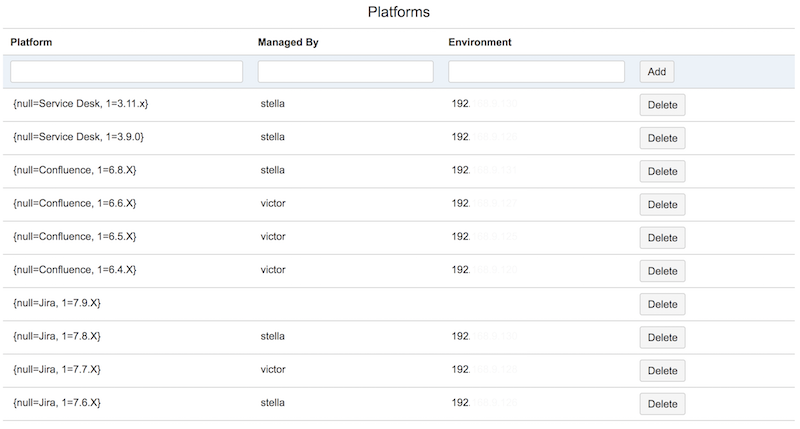

Result on how your lookup the values is stored in your Lookup Table

Please look at "Action if No Records Matched" located in https://akeles.jira.com/wiki/spaces/LOOKUP/pages/45908023 and configure your preferred settings when no matching platforms is found in your post function.



Tips

  1. Field type Storing Formats we have identified

    PluginCustom Field TypeFormatExample
    JiraSelect List (cascading){null=parent value, 1=child value}

    {null=jira, 1=7.9.x}

    Dynamic Forms for JiraDeviniti [Dynamic Forms] - Dynamic Cascading Select{null=parent value, 1=child value}{null=jira, 1=7.9.x}
    Multi-Level Cascading SelectMulti-Level Cascading Select[parent value, child value, grandchild value][jira, 7.9.x, 4 ]
  2. Finding your other option's value? Update your Lookup Table Row values based on how your Lookup String with any of the methods below.

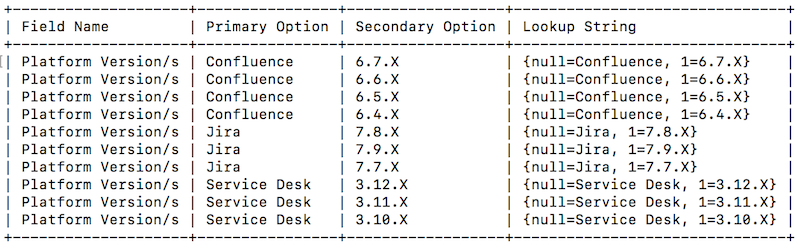

    1. View your parent and child values via a SQL query

      CODE
      SELECT cf.cfname "Field Name",
      cfo1.customvalue "Primary Option",
      cfo2.customvalue "Secondary Option",
      concat("{null=", cfo1.customvalue, ", 1=", cfo2.customvalue, "}") "Lookup String"
      FROM customfield cf, customfieldoption cfo1, customfieldoption cfo2
      WHERE cfname = 'Platform Version/s'
      AND cf.id = cfo1.customfield AND cf.id = cfo2.customfield
      AND cfo1.parentoptionid is null
      AND cfo2.parentoptionid = cfo1.id
    2. View your cascading field's value via a script (with ScriptRunner)

      CODE
      import com.atlassian.jira.component.ComponentAccessor;
      import com.atlassian.jira.issue.CustomFieldManager;
      import com.atlassian.jira.issue.fields.CustomField;
      import com.atlassian.jira.issue.fields.FieldManager;
      import org.apache.log4j.Level;
      import org.apache.log4j.Logger;


      Logger logger = Logger.getLogger("com.akeles.jira");
      logger.setLevel(Level.DEBUG);
      CustomFieldManager customFieldManager = ComponentAccessor.getCustomFieldManager();
      def issue = ComponentAccessor.getIssueManager().getIssueByCurrentKey("TESTPROJ-123")

      // the custom field id we are pulling is: 10901
      CustomField cField = customFieldManager.getCustomFieldObject(10901L);
      String cFieldValue = (String) issue.getCustomFieldValue(cField);
      logger.debug("Custom field's value is = " + cFieldValue);
