User Guide for CQL Counter Macro
Introduction

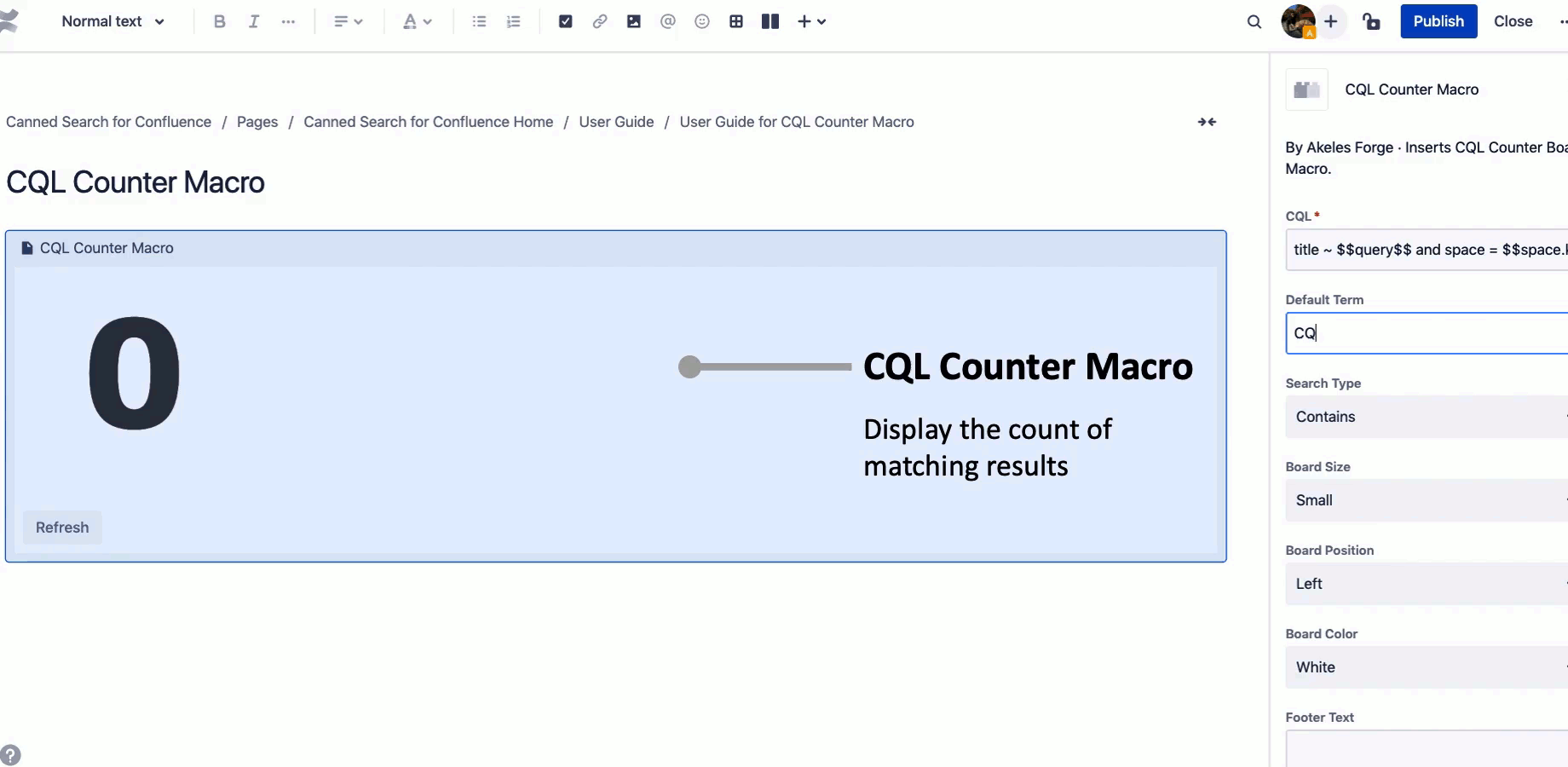

The CQL Counter Macro displays the number of search result for a predefined CQL. It has the following features:
Display the value in large font with optional footer text
Background colour and the size can be changed
Support Convenient Search with placeholders in the CQL query
Configuration
Field Name | Required | Default Value | Explanation | Additional Information |
---|---|---|---|---|
CQL | | Enter a CQL statement with $$query$$ as the search term. | ||
Default Query Term | Enter a default query term to replace the $$query$$ in CQL. | |||
Search Type | Contains | The searching can done with three type searches.
| ||
Board Size | Medium | Select the height of the board:
| ||
Board Position | Left | Select the position of the board
| ||
Board Colour | White | Select the background colour to be displayed:
| ||
Footer Text | Enter a footer text to be displayed below the value. Please limit the text to below 16 characters | |||
Refresh Button | Show | Indicate whether to show the refresh button |
